BEST 9KW37DEL14DSTK Electrified Lever Lock 24DC, Fail Safe
In Stock
$771.12
Price:
$1,428.00
Instant Savings
$656.88

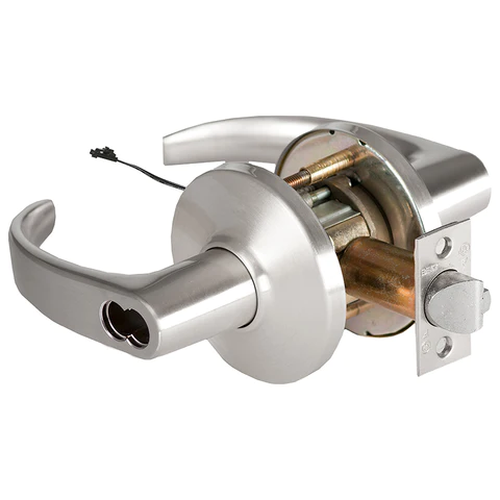

BEST 9KW37DEL14DSTK Electrified Lever Lock 24DC, Fail Safe
Function: Electrically Locked (DEL)
Latch operated by: Rotating the inside lever. Rotating the outside lever only when power is off. Turning the key in the outside lever
Outside Lever
• Locked by - Applying 24 Volts DC Outside lever remains locked only while power is on
• Unlocked by - Switching off 24 Volts DC
Inside Lever
• Locked by - Cannot be locked
• Unlocked by - Always unlocked
Outside Lever
• Locked by - Applying 24 Volts DC Outside lever remains locked only while power is on
• Unlocked by - Switching off 24 Volts DC
Inside Lever
• Locked by - Cannot be locked
• Unlocked by - Always unlocked
Latch:
Solid brass 9/16" throw. Front 2-1/4" x 1-1/8" beveled
Lever handles:
Lever handles are a high-quality zinc alloy. Trim components are brass or bronze. Body is approximately 5/8" in diameter; Handle is approximately 4-3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.
Strike:

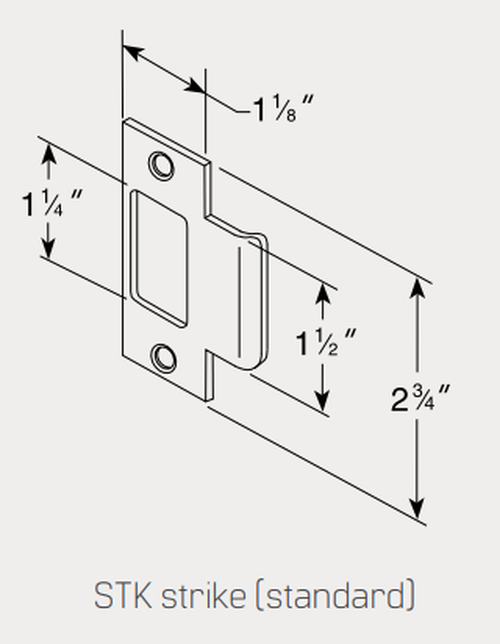

STK: Conforms to ANSI A115.2 (2-3/4" x 1-1/8" with curved lip & box).
Chassis:
Critical latch and chassis components are brass or corrosion- treated steel. 2 1/16" diameter to fit 2 1/8" hole in door
(Conforms to ANSI A115.2). Lost Motion feature available as an option
Door thickness:
available for 1 3/4" or 2 1/4" doors; spacers available for 1 3/8" door Door prep: 2 1/8" diameter cross bore
Backset:
2 3/4" standard
Mounting:
In addition to standard door preparation (ANSI A115.2 for 1-3/4" doors), two additional holes are needed for through-bolts. Throughbolts require two 5/16" diameter holes located at 12 o’clock and 6 o’clock positions. A drill jig can be ordered to insure accuracy of the holes
Model: BEST 9KW37DEL14DSTK626, 9KW37DEL14DSTK605, 9KW37DEL14DSTK606, 9KW37DEL14DSTK612, 9KW37DEL14DSTK613, 9KW37DEL14DSTK625
