BEST 9K37C16D Grade 1 Corridor Cylindrical Lever Lock

BEST 9K37C16DSTK Grade 1 Corridor Cylindrical Lever Lock

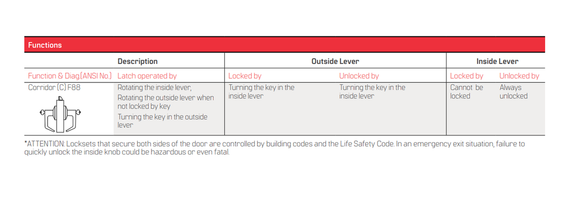

Function: Corridor (C) - F88
Latch operated by: Rotating the inside lever, Rotating the outside lever when not locked by key Turning the key in the outside lever
Outside Lever • Locked by - Turning the key in the inside lever • Unlocked by - Turning the key in the inside lever
Inside Lever • Locked by - Cannot be locked • Unlocked by - Always unlocked

NOTE: Locksets that secure both sides of the door are controlled by building codes and the Life Safety Code. In an emergency exit situation, failure to quickly unlock the inside knob could be hazardous or even fatal

Latch:
Solid brass 9/16" throw. Front 2-1/4" x 1-1/8" beveled

Lever handles:
Lever handles are a high-quality zinc alloy. Trim components are brass or bronze. Body is approximately 5/8" in diameter; Handle is approximately 4-3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.

Strike
STK: Conforms to ANSI A115.2 (2-3/4" x 1-1/8" with curved lip & box).
S3: Conforms to ANSI A115.2 for 1-3/4" doors (4-7/8" x 1-1/4" with curved lip).

Chassis:
Critical latch and chassis components are brass or corrosion- treated steel. 2 1/16" diameter to fit 2 1/8" hole in door
(Conforms to ANSI A115.2). Lost Motion feature available as an option

Door thickness:
available for 1 3/4" or 2 1/4" doors; spacers available for 1 3/8" door Door prep: 2 1/8" diameter cross bore

Backset:
2 3/4" standard

Mounting:
In addition to standard door preparation (ANSI A115.2 for 1-3/4" doors), two additional holes are needed for through-bolts. Throughbolts require two 5/16" diameter holes located at 12 o’clock and 6 o’clock positions. A drill jig can be ordered to insure accuracy of the holes

Model: BEST 9K37C16DSTK626, 9K37C16DS3626, 9K37C16DSTK605, 9K37C16DS3605, 9K37C16DSTK606, 9K37C16DS3606, 9K37C16DSTK612, 9K37C16DS3612, 9K37C16DSTK613, 9K37C16DS3613, 9K37C16DSTK625, 9K37C16DS3625
