BEST 9K37A15D Grade 1 Dormitory or Storeroom Cylindrical Lever Lock

BEST 9K37A15DSTK Grade 1 Dormitory or Storeroom Cylindrical Lever Lock

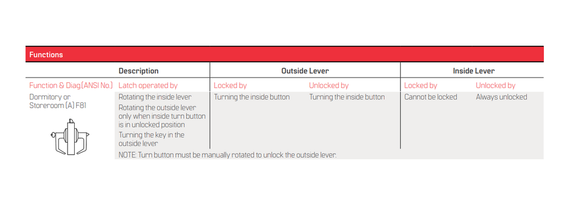

Function: Dormitory or Storeroom (A) - F81
Latch operated by: Rotating the inside lever. Rotating the outside lever only when inside turn button is in unlocked position. Turning the key in the outside lever
Outside Lever • Locked by - Turning the inside button • Unlocked by - Turning the inside button
Inside Lever • Locked by - Cannot be locked • Unlocked by - Always unlocked
NOTE: Turn button must be manually rotated to unlock the outside lever

Latch:
Solid brass 9/16" throw. Front 2-1/4" x 1-1/8" beveled

Lever handles:
Lever handles are a high-quality zinc alloy. Trim components are brass or bronze. Body is approximately 5/8" in diameter; Handle is approximately 4-3/4" long (from center-line of chassis). #14 and #15 levers conform to California Administrative Code Title 19 and Title 24. All three styles of levers conform to the Illinois Accessibility Standard.

Strike
STK: Conforms to ANSI A115.2 (2-3/4" x 1-1/8" with curved lip & box).
S3: Conforms to ANSI A115.2 for 1-3/4" doors (4-7/8" x 1-1/4" with curved lip).

Chassis:
Critical latch and chassis components are brass or corrosion- treated steel. 2 1/16" diameter to fit 2 1/8" hole in door
(Conforms to ANSI A115.2). Lost Motion feature available as an option

Door thickness:
available for 1 3/4" or 2 1/4" doors; spacers available for 1 3/8" door Door prep: 2 1/8" diameter cross bore

Backset:
2 3/4" standard

Mounting:
In addition to standard door preparation (ANSI A115.2 for 1-3/4" doors), two additional holes are needed for through-bolts. Throughbolts require two 5/16" diameter holes located at 12 o’clock and 6 o’clock positions. A drill jig can be ordered to insure accuracy of the holes

Model: BEST 9K37A15DSTK626, 9K37A15DS3626, 9K37A15DSTK605, 9K37A15DS3605, 9K37A15DSTK606, 9K37A15DS3606, 9K37A15DSTK612, 9K37A15DS3612, 9K37A15DSTK613, 9K37A15DS3613, 9K37A15DSTK625, 9K37A15DS3625
