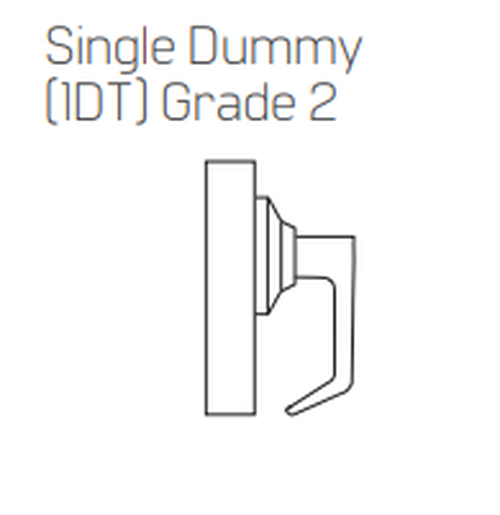

BEST 7KC01DT16D Grade 2 Single Dummy Lever Lock

BEST 7KC01DT16D Grade 2 Single Dummy Lever Lock

Door thickness: 1 3/8" to 2"

Backset: 2 3/4"

Lever: 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.

Material: Component parts include brass, bronze or zinc. Internal parts are zinc dichromate steel.

Mounting: 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.

Rose: D – 3 1/2" diameter mounting screws concealed.

Finishes: 605 – bright bras 606 – satin bras 612 – satin bronze 613 – oxidized satin bronze, oil rubber 625 – bright chromium plate 626 – satin chromium plated

Interchangeable core: Solid brass, pin-tumbler type in lever with 7-pin core.

Limited Warranty: 3 Year Warranty

7KC Series – Features:

• Cylindrical chassis to fit common door preparation.

• Standard and Drive-in latches available.

• Through-bolt mounting studs increase torque resistance.

• Quick rekeying with BEST interchangeable core.

• No exposed keeper hole on keyed levers for increased security.

• Hub torque spring provides extra resistance to lever sag.

• Snap-on inside rose (no exposed mounting screws).

• Keyed lever is removable only after removal of core.

• Internal steel mechanisms are corrosion treated for normal atmospheric conditions.

• ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).

• Lockset reversible for either hand of door without removing keyed lever.

• Underwriters Laboratories®: 7KC series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single (4’ x 8’) doors.

• Builders Hardware Manufacturers Association: 7KC series – Listed by BHMA for A156.2, Series 4000, Grade 2.

• ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois

• Accessibility Standard 400.310 (j)(8).

• California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24. Products covered by one or more of the following patents: 5

 Model: BEST 7KC01DT16D626, 7KC01DT16D605, 7KC01DT16D606, 7KC01DT16D612, 7KC01DT16D613, 7KC01DT16D625
