Best 45HZ7DV16KP626 keypad EZ Mortise Lock, Satin Chrome

Price: $1,721.00
Instant Savings $466.39

SKU: 45HZ7DV16KP626
Availability: ✓ In stock!
Series: 45HZ
Function: Keypad w/ Key Override
Cylinder: Best 7-Pin SFIC Prep - Less Core
Backset: 2-3/4"
Choose Options:
Hurry! Only left

BEST 45HZ Keypad EZ Mortise Lock, 7-Pin Housing; Latch w/Key Function, Curved/Return Lever Style, Keypad, Satin Chrome

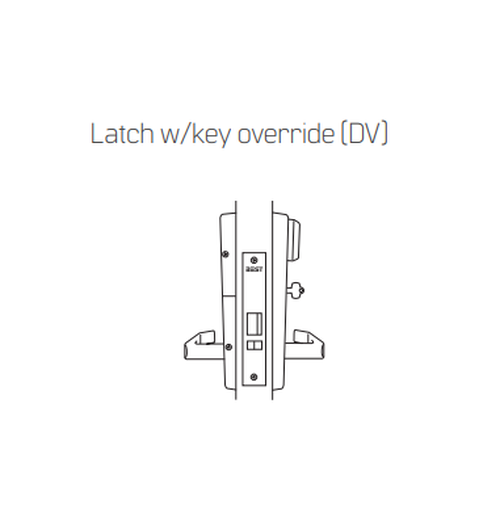

Function: Latch w/key override (DV)

Latchbolt operated by lever either side,except when outside lever is locked by internal motor drive mechanism; latchbolt is retracted by key outside. Auxiliary latch deadlocks the latchbolt.

Internal motor drive mechanism operated by electronic signal when presenting valid token. Green light indicates valid access. Red light and sounder indicate invalid access attempt.

Hardware Features

• Heavy-duty mechanical platform designed and manufactured for the toughest applications.
• The key override feature allows for mechanical access.
• 12 position keypad design with audible and visual feedback.
• Optional 8-cell battery holder for longer life, or standard 4-cell battery holder, each with AA alkaline batteries that are easily changed.
• Local factory-trained technical services are available 24 hours a day to meet any emergency need.
• Replacement parts available.
• Weather-resistant for versatile applications, including doors exposed to inclement weather.
• Remote unlock standard.

Software Features

• Variable PIN length from 3-6 digits.
• Maximum of 50 users.
• All programming occurs through the keypad.
• Passage Mode privilege – authorized users can unlock device for extended periods of time.
• Deadbolt Override privilege – authorized users can gain access even when a mortise deadbolt is thrown.
• Provides for 1 Administrator PIN and 5 Supervisor PINs to allow easy management of groups of users.

Mechanical 40HZ Specifications

Case – 0.095" cold rolled steel, 5-7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.

Faceplate – Brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Automatically adjusts to proper bevel during installation

Strike – Brass, bronze, or stainless steel base material, 4-7/8" H x 1-1/4" W x 3/32" T. ANSI A115.1. Universal (non-handed) strike supplied standard with lock.

Backset – 2-3/4"

Certification – UL listed for GYQS electrically controlled single point locks or latches for use on 3 hour A label doors. The listing applies for both U.S. and Canadian applications.

Door thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to 3" thick (specify thickness when ordering).

Latchbolt – Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation, reversible without opening case.

Deadbolt – Stainless steel, 1" throw.

Auxiliary bolt – Stainless steel, non-handed.

Lever Handle – Brass, bronze, or stainless steel base material. Lever styles 3, 14, and 15 return to a minimum of 1/2" of door surface. Lever 12, 16 and 17 do not return.

Escutcheon – 10-1/2" H x 3-5/16" W x 1" D (1" at the top, sloping down to 3/4" at the bottom)


Primary power – 4 AA batteries (standard). 8 AA batteries for longer life, or 4 cell shrink wrapped battery pack (optional)
* Two phase battery warning system is given via audible and visual responses reducing the potential for complete power loss.

Memory backup – Maintains programming indefinitely

Relative humidity – 10% to 90% non-condensing.

Shock – 2000 Gs RMS (maximum door-slam shock).

Compliance – Compliance to FCC, Canadian, and European EMC requirements; for interference FCC Class A digital apparatus


Bezel size – 2-5/8" W x 3-3/8" H

Material – Bezel–High impact ABS, Keypad–Encapsulated elastomer

ESD Protection – 15KV

Button operating life – 3-5 million cycles

Button operating force – 3.88 ounces

Sealing – Weatherproof lens and gasket provides protection for outdoor use (Usable in most environmental/exterior applications)
