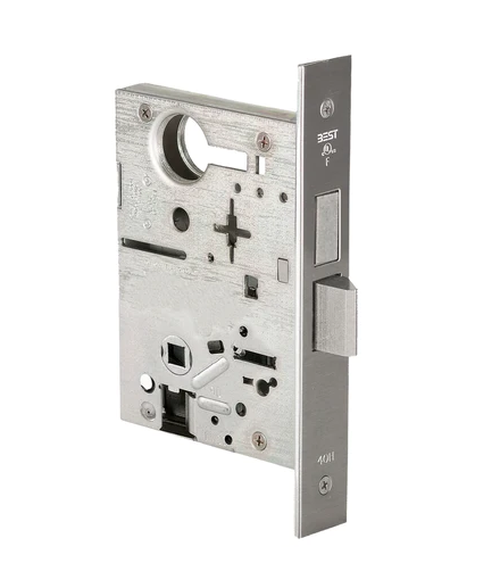

BEST 45HCAT Grade 1 Dormitory Mortise Lever Lock, Lockbody Only

BEST 45HCAT Grade 1 Dormitory Mortise Lever Lock, Lockbody Only, Field Reversible

Function: Dormitory (T) - ANSI F13
• Latch operated by rotating inside lever/knob, rotating outside lever only when deadbolt is retracted or turning key in outside cylinder
• Deadbolt operated by turning key in outside cylinder or inside turn lever
• Inside lever retracts deadbolt and latch simultaneously
• Outside lever/knob locked and unlocked by turning key in outside cylinder or turning inside turn lever, unlocked by rotating inside lever/knob
• Inside lever/knob always unlocked

Door Thickness: 1-3/4"

Backset: 2-3/4" (Standard)

Strike: S1 - ANSI Curved Lip Strike (Standard)

Strike Dimension: 4-7/8" x 1-1/4" x 3/32"

Lock Face Size: 8" x 1-1/4"

Bolt Projection: 3/4" Latch, 1" Deadbolt

Handing: Field Reversible

Product Type: Mortise Lock - Lock Body

Model: BEST 45HCAT626, 45HCAT630, 45HCAT605, 45HCAT606, 45HCAT612, 45HCAT613, 45HCAT625
