BEST 45HCAAB Grade 1 Office Mortise Lever Lock, Lockbody Only

BEST 45HCAAB Grade 1 Office Mortise Lever Lock, Field Reversible

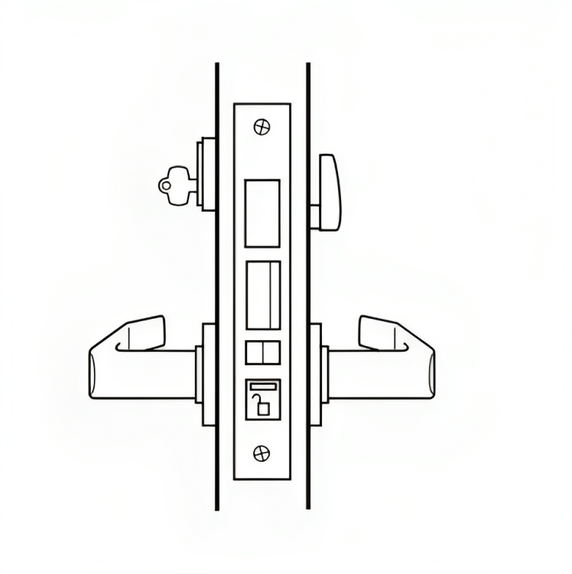

Function: Office (AB) - ANSI F20
• Latch operated by rotating inside lever/knob, by rotating outside lever/knob only when locking toggle is in unlocked position or by turning key in outside cylinder
• Deadbolt operated by turning key in outside cylinder or by inside turn lever/knob
• The latchbolt is deadlocked with an auxiliary deadlatch
• Outside lever/knob locked by placing locking toggle in locked position or projecting deadbolt by key or turn lever
• Outside lever/knob unlocked by turning key in outside cylinder and placing locking toggle in unlocked position
• Inside lever/knob retracts deadbolt and latch simultaneously
• Inside lever/knob always unlocked

Door Thickness: 1-3/4"

Backset: 2-3/4" (Standard)

Strike: S1 - ANSI Curved Lip Strike (Standard)

Strike Dimension: 4-7/8" x 1-1/4" x 3/32"

Lock Face Size: 8" x 1-1/4"

Bolt Projection: 3/4" Latch, 1" Deadbolt

Handing: Field Reversible

Product Type: Mortise Lock - Lock Body

Model: BEST 45HCAAB626, 45HCAAB630, 45HCAAB605, 45HCAAB606, 45HCAAB612, 45HCAAB613, 45HCAAB625
