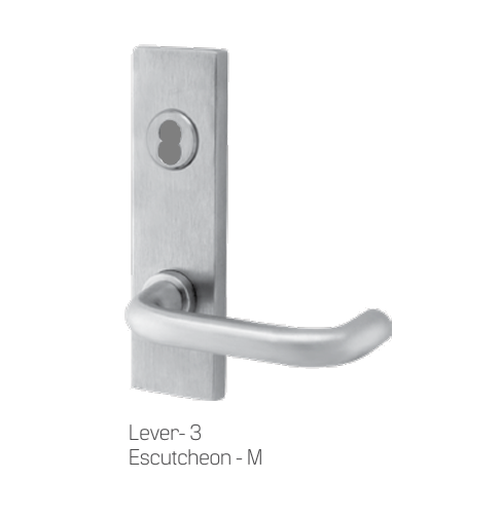

BEST 45H7A 3M 626 Office Mortise Lever Lock w/ 3 Lever and M Escutcheon, Satin Chrome Finish
New
In Stock
$919.13
Price:
$1,515.00
Instant Savings
$595.87
BEST 45H7A 3M 626 Grade 1 Office Mortise Lock, 3 Lever, M Escutcheon, SFIC Housing Less Core, Satin Chrome, Field Reversible
Function: Office (A) - ANSI No. F04
• Latch operated by rotating inside lever/knob, by rotating outside lever only when unlocked by key or turn lever or by turning key in outside cylinder
• The latchbolt is deadlocked with an auxiliary deadlatch
• Outside lever/knob locked by turning inside turn lever or turning key in outside cylinder
• Outside lever/knob unlocked by turning inside lever or turning key in outside cylinder
• Inside lever/knob always unlocked
Lever Style: 3M - 3 Lever w/ M Escutcheon
Auxiliary bolt – Stainless steel, non-handed.
Backset – 2-3/4"
Case – 0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W.
Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation.
Case – 0.095” cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W.
Steel is zinc dichromate plated for corrosion protection.
Deadbolt – Stainless steel, 1" throw.
Latchbolt –Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation.
Reversible without opening case.
Strike – S1 – Standard strike: 4-7/8" x 1-1/4" x 3/32", nonhanded, curved lip, 1-1/4" lip tocenter strike. Fits standard door frame ANSI A115.1
Strike – S1 – Standard strike: 4-7/8" x 1-1/4" x 3/32", nonhanded, curved lip, 1-1/4" lip tocenter strike. Fits standard door frame ANSI A115.1
Door Thickness – Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to 5" thick
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during installation.
Finishes – 605 - bright brass, 606 – satin brass, 611 – bright bronze, 612 – satin bronze, 613 – oxidized satin bronze, oil rubbed, 618 – bright nickel plated, 619 – satin nickel plated, 622 – flat black coated, 625 – bright chromium plated, 626 – satin chromium plated, 629 - bright stainless steel, 630 – satin stainless steel, 690 – dark bronze coated
Faceplate –Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during installation.
Finishes – 605 - bright brass, 606 – satin brass, 611 – bright bronze, 612 – satin bronze, 613 – oxidized satin bronze, oil rubbed, 618 – bright nickel plated, 619 – satin nickel plated, 622 – flat black coated, 625 – bright chromium plated, 626 – satin chromium plated, 629 - bright stainless steel, 630 – satin stainless steel, 690 – dark bronze coated
ADA-Americans With Disabilities Act:
45H Series –The design and operation of the BEST® mortise lock meets the intent of the standard for ANSI A117.1 section 404.2.6.
Builders Hardware Manufacturers Association:
45H Series –ANSI A156.13, Series 1000, Grade 1 Operation and Strength, Grade 2 Security.
To meet Grade 1 Security,a drill resistant core(1CD, 1CDP, 1CDF, or 1CDX) must be used with escutcheon trims,
and 1EK7K4 high security cylinder must be used with sectional trims.
Underwriters Laboratories® – The 40H series is listed by Underwriters Laboratories for use on a 3 hour A label doors.
These locks also carry the C-UL mark which is officially accepted in all of Canada,
indicating compliance with appropriate Canadian standards and codes. The 47H series locks conform to UL437
standard for key locks, referencing door locks. The 1EJ7J4 cylinder used in the 47H series also conforms to UL437
standard for key locks, referencing high security cylinders, and is listed for Canada as well as the United States.
Florida Building Code (FBC) Listed – See certification listing for all 40H series lock functions that are certified for use in
applications requiring a design pressure rating as specified.
Description Model Single Door Double Door
PSF w/o DeadBolt 45H and 47H +-60 +-35
PSF w/ DeadBolt 45H and 47H +-60 +-35
PSF w/ DeadBolt 48H and 49H +-40.5 +-40.5
Model: BEST 45H7A3M626
