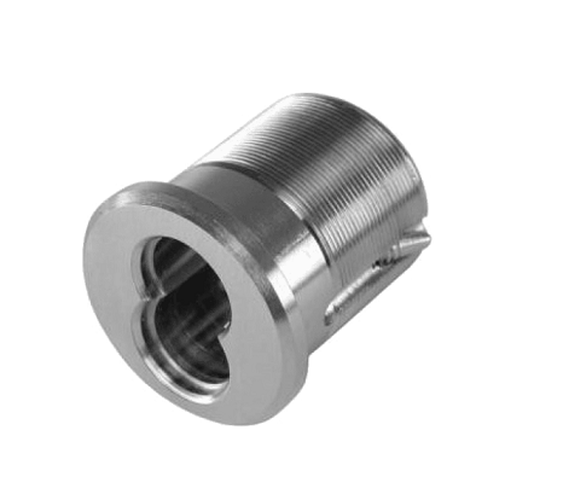

BEST 1E76-C181RP1 1-1/4" Tapered Mortise Cylinder, SFIC Housing, 7-pin w/ C181 Cam

BEST 1E76-C181RP1 SFIC Mortise Housing, Tapered Cylinder, 7-Pin, 1-1/4" Length, C181 Adams Rite Cam, 1-5/32" diameter, Less Core

1E Mortise Cylinder
Standard mortise applications require use of BEST’s 1E series cylinders with standard 1E-C4 cam. BEST cylinders may be altered to function with other manufacturers’ locks by use of different cams and different cylinder rings. Special cylinder variations are available for most applications. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be master-keyed into any existing BEST system.

Cylinder Type: SFIC Mortise Housing

Num Pins: 7-pin

Cylinder Length: 1-1/4 Inch

Cylinder Diameter: 1-5/32"

Door Thickness: 7 pin: 1-3/8" (including trim); 1-3/4" (without trim)

Cam Type: Adams Rite

Cam Number: C181

Material: Solid brass or bronze

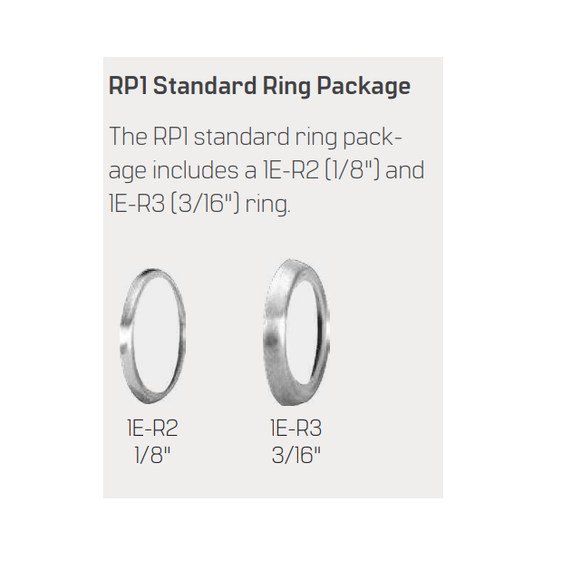

Rings: The RP1 ring package is supplied standard with all 1E taper cylinders

Model: BEST 1E76-C181RP3626, 1E76-C181RP3605, 1E76-C181RP3606, 1E76-C181RP3612, 1E76-C181RP3613, 1E76-C181RP3625
