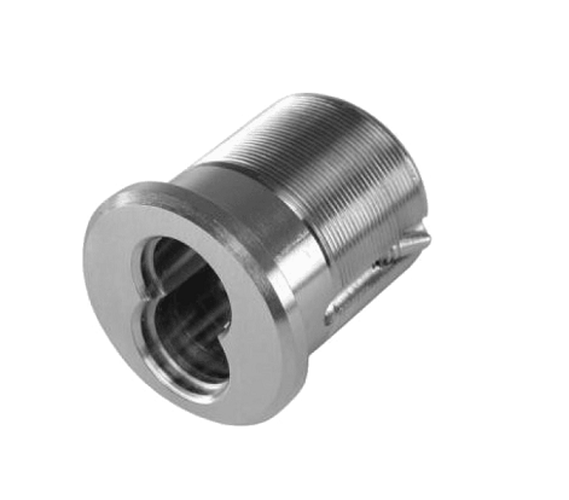

BEST 1E7428C258RP3 1-3/4" Mortise Cylinder, SFIC Housing, 7- pin w/ C258 Cam

BEST 1E7428C258RP3 SFIC Mortise Housing, 7-Pin, 1-3/4" Length, C258 Best Mortise (Deadbolt), 1-5/32" diameter

1E Mortise Cylinder
Standard mortise applications require use of BEST’s 1E series cylinders with standard 1E-C4 cam. BEST cylinders may be altered to function with other manufacturers’ locks by use of different cams and different cylinder rings. Special cylinder variations are available for most applications. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be master-keyed into any existing BEST system.

Cylinder Type: SFIC Mortise Housing

Num Pins: 7-pin

Cylinder Length: 1-3/4 Inch

Cylinder Diameter: 1-5/32"

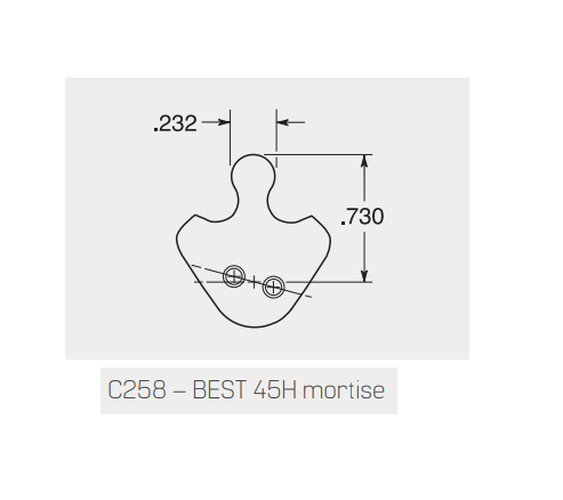

Cam Type: Best Mortise (Deadbolt)

Cam Number: C258

Door Thickness: 1-7/8" to 2-1/2"

Rings: RP3 (for 7 pin) package is supplied standard

Model: BEST 1E7428C258RP3626, 1E7428C258RP3605, 1E7428C258RP3606, 1E7428C258RP3612, 1E7428C258RP3613, 1E7428C258RP3625
