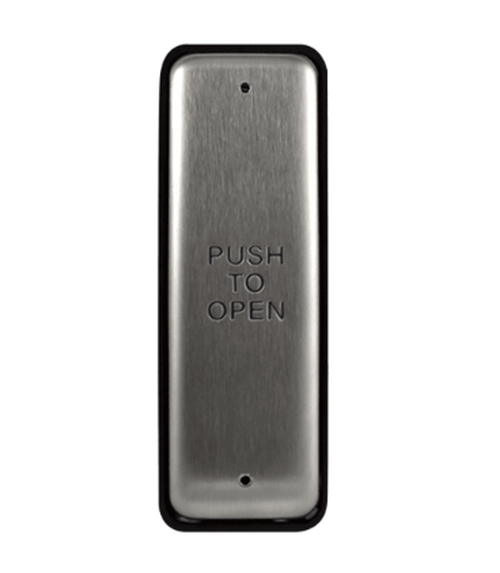

BEA 10PBJ 1-1/2" x 4-3/4" Stainless Steel Jamb Push Plate w/ "Push to Open" Text

BEA 10PBJ 1-1/2" × 4-3/4" jamb, stainless steel push plate with blue “Push to Open” text

BEA’s JAMB PUSH PLATES improve overall door access, enhance accessibility for those with limited mobility or disabilities and seamlessly integrate with an automatic door’s activation.

Jamb Push Plates can be mounted in areas with limited space available, such as on guide rails. These push plates may be hard wired to the door operator or connected to BEA’s line of wireless transmitters.

Specifications
Faceplate Material: 16 gauge, 304 2B stainless steel

Faceplate Dimensions: 1-1/2" (W) × 4-3/4" (H) × 31/50" (D)

Backplate Material:  1/8" thick, aluminum

Mounting Screws: Stainless steel, 6-32 × 1" & 8-32 × 1"; Allen head size: 5/64

Cherry Switch: Single-pole, 15 A, COM / NO / NC, UL recognized

Compatible Wireless Frequencies:  900, 433, or 300 MHz

Model: BEA 10PBJ
