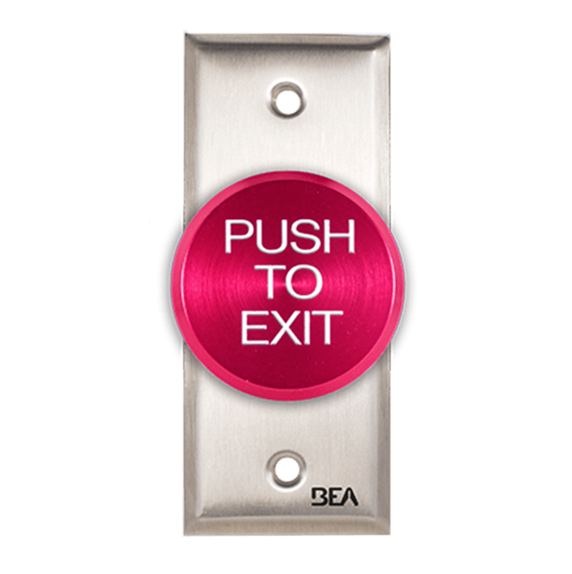

BEA 10ACPBDA1 Pneumatic Pushbutton, Jamb plate w/ 2" Red button, "Push to Exit" text

BEA 10ACPBDA1 Pneumatic Push Button, Jamb plate, oversized 2" Red button, "Push to Exit" text, 2.5 AMP 12 to 24 V AC/DC

BEA’s PNEUMATIC PUSH BUTTONS are ruggedized, including stainless steel faceplates and colored, anodized aluminum buttons, appropriate for most indoor applications.

The device is uniquely designed to minimize the number of moving parts, in turn reducing the wear and tear of the button and extending the life of the device.

Upon activation, the user-defined time delay initiates without additional mechanical action or the need of external power.

Specifications
Technology: Pneumatic

Faceplate Dimension: Jamb - 1-3/4” (W) × 4-1/2” (H)

Visual Style: Red Button with “Push to Exit” text

Materials: Stainless steel faceplate with colored, anodized aluminum button

Switch Rating: 5 A @ 125 VAC

Time Range: 2 – 60 s ±15%, adjustable

Repeat Accuracy: ±5% @ 72 °F

Operating Temperature: Rated for indoor use only-15 – 120 °F

Timer Life: 1 million operations

Model: BEA 10ACPBDA1
