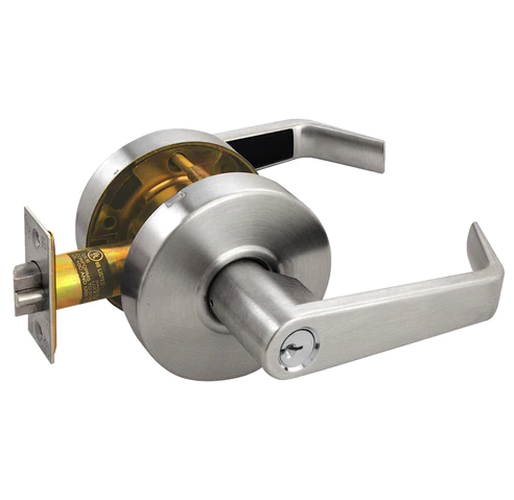

Arrow RL17-SR Grade 2 Classroom Cylindrical Lever Lock w/ Sierra Lever Style

Arrow RL17-SR Grade 2 Classroom Cylindrical Lock, Sierra Lever, Non-Handed

The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Function: Classroom - ANSI F84
Latchbolt operated by lever either side except when key outside locks outside lever. Inside lever always free. Key outside locks/unlocks outside lever only.

Specifications
Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8” (54mm) bore through door.

Backset: 2-3/8” (60mm) or 2-3/4” (70mm)

Strike: 4-7/8” ANSI (124mm), 2-3/4” (70mm) T strike, or 2-1/4” (57mm) full lip strike

Cylinder: Standard: solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway. Optional: prep for small format interchangeable. (cylinder not included)

Keys: 2 brass keys

Door Thickness: Fits 1-3/8” (35mm) to 1-3/4” (44mm) doors standard.

Latch: Brass 1/2” (13mm) throw, UL Listed, guarded latchbolt on all locking functions.

Latch Front: 1” x 2-1/4” (25mm x 57mm) for 2-3/8” backset (60mm) or 1-1/8” x 2-1/4” for 2-3/4” (70mm) backset.

Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4” (121mm) in length. RL Roses are wrought brass 3-3/8” (86mm) diameter. Total projection from face of door is 2-1/2” (64mm).

Handing: Non-handed

Thru-bolts: Removable thru-bolts standard on RL Series

Warranty: Five Year Mechanical Warranty

Finishes: 03 Bright Brass, 04, Satin Brass, 10B Dark Oxide Bronze - Oil Rubbed, 26D Satin Chromium Plated, 26 Bright Chromium Plated, 10 Satin Bronze

Certification
The RL Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour,
A label single swinging doors. RL Levers conform to ADA requirements

ADA/Americans with Disabilities Act
Acceptable Door Hardware: Section 4.13.9
Handles, pulls, latches and other operating devices on accessible doors shall have a shape that is easy to grasp with one hand and does not require grasping, tight pinching or twisting of the wrist to operate. Lever operated mechanisms, push-type mechanisms and “U” shaped handles are acceptable designs.
(Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.)

Model: Arrow RL17-SR-26D, RL17-SR-03, RL17-SR-04, RL17-SR-10, RL17-SR-10B, RL17-SR-26, RL17-SR-26D-IC, RL17-SR-03-IC, RL17-SR-04-IC, RL17-SR-10-IC, RL17-SR-10B-IC, RL17-SR-26-IC, RL17-SR-26D-LC, RL17-SR-03-LC, RL17-SR-04-LC, RL17-SR-10-LC, RL17-SR-10B-LC, RL17-SR-26-LC, RL17-SR-26D-CS, RL17-SR-03-CS, RL17-SR-04-CS, RL17-SR-10-CS, RL17-SR-10B-CS, RL17-SR-26-CS
