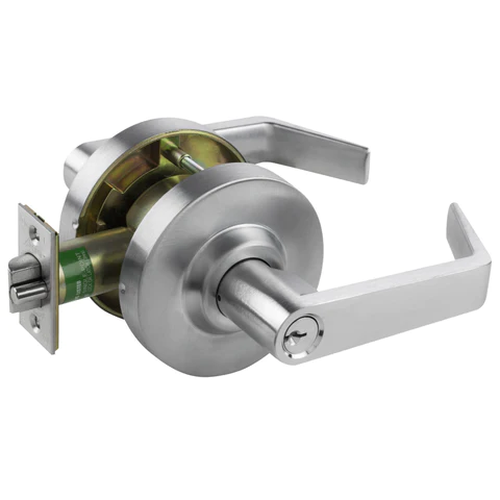

Arrow QL81-SR Grade 1 Entrance Cylindrical Lever Lock

Arrow QL81-SR Grade 1 Cylindrical Lock, Entrance Function, Key in Lever Cylinder, Sierra Lever, 3-11/32" Rose Diameter, Non-Handed

The QL Series is a robust Grade 1 lockset featuring a Freewheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.

Function: Entrance

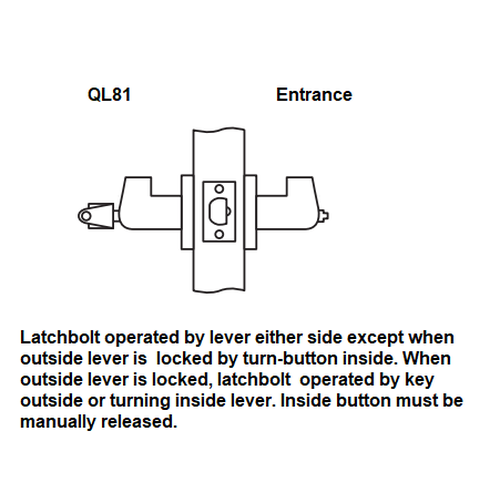

Latchbolt operated by lever either side except when outside lever is locked by turn-button inside. When outside lever is locked, latchbolt operated by key outside or turning inside lever. Inside button must be manually released.

Features
Door Preparation: Requires standard 2-1/8" (54mm) bore through door.

Handing: Non-handed

Cylinder: Solid brass, 6-pin, keyed different, Arrow A or Schlage C keyway (Standard). Optional: prep for small or large format interchangeable core cylinder (cylinder not included).

Keys: 2 brass keys

Strike: 4-7/8" ANSI (124mm)

Backset: 2-3/4" (70mm)

Door Thickness: Fits 1-3/8" (35mm) to 1-3/4" (44mm) doors standard.

Latch: Stainless Steel 1/2" (13mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (70mm) backset.

Exposed Trim: QL Levers are pressure cast zinc measuring 4-3/4" (121mm) in length. QL Roses are wrought brass 3-11/32" (85mm) diameter. Total projection from face of door is 2-17/32" (65mm).

Freewheeling Lever

Warranty: Ten Year Warranty

Finishes: 03 Bright Brass, 613E Dark Oxide Satin Bronze, 26D Satin Chromium Plated

Certification and Compliance
• Arrow QL Series Cylindrical Lever Locks are BHMA Grade 1 Certified, ANSI/BHMA A156.2, Series 4000
• All Arrow QL Series Locks are U.L. and c.U.L. list for use on 3 hour, A label or lesser doors
• Meets American with Disabilities Act Requirements

Model: Arrow QL81-SR-26D, QL81-SR-03, QL81-SR-613E, QL81-SR-BSP
