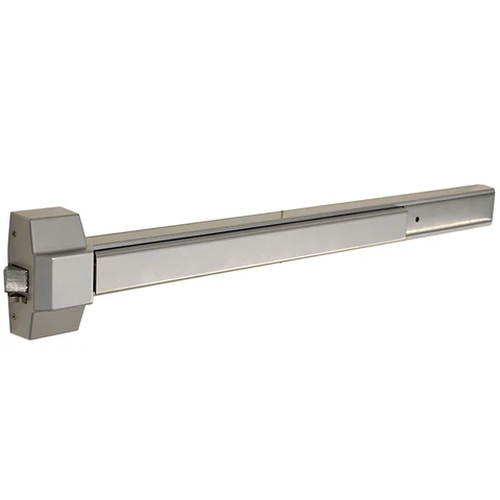

Arrow PEC910-36 36" Rim Exit Device, Permanent End Cap

Arrow PEC910-36 Rim Exit Device, Permanent End Cap, 36"

The Arrow Patented Permanent End Cap Exit Device is designed for quick installation. The PEC910 is BHMA Grade 1 Certified and offers a precision installation using the install template, built-in end cap and slide mounting.

Specifications
Chassis: Stamped steel materials

Chassis Cover: Cast zinc

Door Type: Fits 1-3/4" (44.5 mm) doors standard

Door Width:  For 48" doors, can be cut for a minimum 43" door width. For 36" doors, can be cut for a minimum 31" door width.

Stile: 4-1/2" (144.30 mm) minimum

Mounting: Wood and machine screws furnished standard

Handing: Reversible

Dogging: Hex-type hold down

Strike: Surfaced applied, nylon coated

Latchbolt: Stainless steel

Rail Assembly: Powder coated steel, stainless steel optional

Warranty: Ten year warranty

Finishes: AL, BRZ, LBZ (sprayed finishes)

Certification & Compliance:
• ANSI/BHMA A156.3, Grade 1
• Underwriters Laboratories (UL and CUL) Listed for accident hazard (panic) standard.
• All exit devices comply with life safety code NFPA 101

Model: Arrow PEC910-36 AL, PEC910-36 BRZ, PEC910-36 32D
