Arrow MLX12-SR Grade 2 Storeroom Cylindrical Lever Lock w/ Rigid Sierra Lever Style

Arrow MLX12-SR Grade 2 Cylindrical Lock, Storeroom Function, Key in Lever Cylinder, Rigid Sierra Lever, 3-11/32" Rose Diameter, Removable Thru-Bolts, Non-Handed

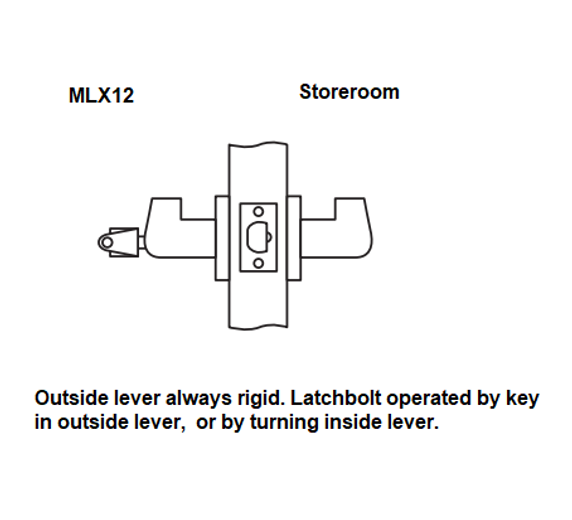

Function: Storeroom
Outside lever always locked. Latchbolt operated by key in outside lever, or by turning inside lever.

Features
Door Preparation: Requires standard 2-1/8" (53.97mm) bore through door

Backset: 2-3/4" (69.85mm)

Strike: 4-7/8" ANSI (123.83mm)

Cylinder: Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different. Optional: prep for small or large format interchangeable core cylinder (cylinder not included).

Keys: 2 brass keys

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard

Latch: Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front: 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset

Exposed Trim: – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).

Handing: Non-handed

Warranty: Ten Year Warranty

Finishes: 03 Bright Brass, 613E Dark Oxide Bronze - Clear Coated, 26D Satin Chromium Plated

Certification & Compliance
Arrow MLX Series Cylindrical Lever Locks are BHMA Grade 2 Certified, ANSI/BHMA A156.2, Series 4000
All Arrow MLX Series Locks are U.L. and c.U.L. list for use on 3 hour, A label or lesser doors
Meets American with Disabilities Act Requirements

Model: Arrow MLX12-SR-26D, MLX12-SR-03, MLX12-SR-613E, MLX12-SR-BSP
