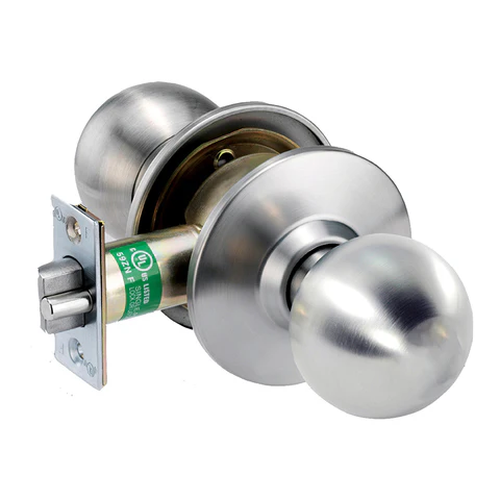

Arrow HK02-BB-630 Privacy Cylindrical Knob Lock w/ Ball Knob, Satin Stainless Steel Finish

Arrow HK02 Grade 1 Privacy Cylindrical Lock, Ball Knob, Non-Keyed, Satin Stainless Steel Finish

The HK series Grade 1 Cylindrical Knob lock is designed and tested for themost robust applications for Grade 1 knob locksets. Backed by the Arrow 10 year warranty and Certified to BHMA Grade 1 it is the worry free solution when a Grade 1 knob lock is needed.

A great choice for a variety of commercial applications when a Grade 1 knob is needed.

Function: Privacy - ANSI F76
Latch operated by knob either side except when outside knob is locked by pushing inside button.
Outside knob unlocked by turning inside knob, using emergency key, or closing door.
Inside knob always operates latch.

Features
Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision cast steel. Requires standard 2-1/8” (54mm) bore through door.

Backset: 2-3/4” (70mm) backset standard.

Door Thickness: 1-3/8” (35mm) to 2” (51mm).

Latch: Brass with 1/2” (13mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1” (25mm) bore in edge of door required.

Latch Front: Brass or stainless steel, 2-1/4” (57mm) x 1-1/8” (29mm), beveled 1/8” (3mm)in 2” (51mm).

Handing: Reversible.

Strike: Brass or stainless steel. ANSI A115.2, 4-7/8” (124mm) x 1-1/4” (32mm) curved lip standard. All strikes have 1-1/4” (32mm) lip to center dimension.

Certification & Compliance
• ANSI/BHMA A156.2, Series 4000, Grade 1.
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C.

Model: Arrow HK02-BB-630
