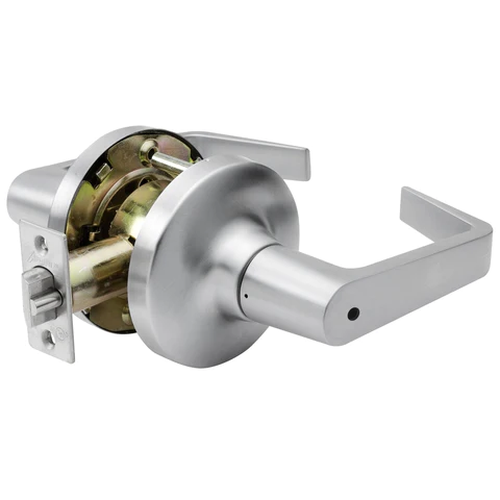

Arrow GL02-SR Grade 1 Privacy Cylindrical Lever Lock w/ Sierra Lever Style

Arrow GL02-SR Grade 1 Privacy Cylindrical Lock, Sierra Lever, Non-Keyed, Non-Handed

Arrow GL Series Grade 1 heavy duty levers offer an economically pleasing solution for ADA compliance. The GL solution is designed with the installer in mind, providing fewer subcomponents to allow for an easier to install system. Simply put, the GL Series will be your number one choice when economy is your first priority.

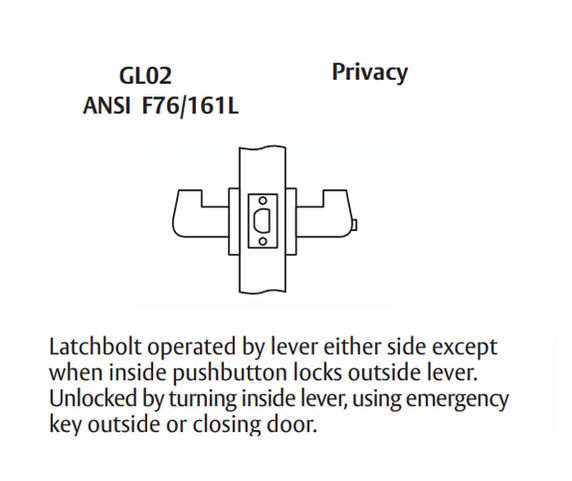

Function: Privacy - ANSI F76/161L
Latchbolt operated by lever either side except when inside pushbutton locks outside lever.
Unlocked by turning inside lever, using emergency key outside or closing door.

Features
Housing: Interlocking lever tubes are made from dichromate plated steel. The tubes are attached to the rose insert. This offers fantastic support for a ridged feel without excess movement. Standard bearing sleeves used on most other Arrow lever series are not used on the GL.

Requires standard 2-1/8” (54mm) bore through door.

Thru-Bolts: Removable thru-bolts standard on GL Series

Backset: 2-3/4” (70mm) standard. See price book for alternate backsets.

Strike: Brass and stainless steel. ANSI A115.2, 4-7/8” (124mm) x 1-1/4” (32mm) curved lip strike standard.

Door Thickness: 1-3/8” (35mm) to 2” (51mm).

Latch: Stainless Steel with 1/2” (13mm) throw standard. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1” (25mm) bore in edge of door is required.

Latch Front: Brass and stainless steel. 2-1/4” (57mm) x 1-1/8” (29mm), 1/8” (3mm) in 2” (51mm).

Exposed Trim: Levers are pressure cast zinc. Streamline rose scalp of brass or bronze complements other series of lever locks.

Rose Inserts: Contain coil spring which is a permanent assembly within rose insert. Inside and outside rose scalps are retained by dimples that create an interference fit with the rose inserts. There are no special retention features added to the rose insert that align the scalp.

Handing: Non-handed. Levers operate bi-directionally

Warranty: Limited five year warranty

Finishes: 03 Bright Brass, 04, Satin Brass, 10B Dark Oxide Bronze - Oil Rubbed, 26D Satin Chromium Plated

Certification
All Arrow GL Series locks are UL/cUL listed for use on 3 hour, A label or lesser doors and are certified to conform to the requirements of ANSI/BHMA A156.2, Series 4000, Grade 1.
Federal Specification FF-H-106C
ANSI A117.1 Accessibility Code
California State Reference Code for levers returning to within 1/2” (13mm) of door surface

ADA/Americans with Disabilities Act
Acceptable Door Hardware: Section 4.13.9
Handles, pulls, latches and other operating devices on accessible doors shall have a shape that is easy to grasp with one hand and does not require grasping, tight pinching or twisting of the wrist to operate. Lever operated mechanisms, push-type mechanisms and “U” shaped handles are acceptable designs.
(Look for the universal symbol next to Arrow products that comply with ADA accessibility requirements.)

Model: Arrow GL02-SR-26D, GL02-SR-03, GL02-SR-10B
