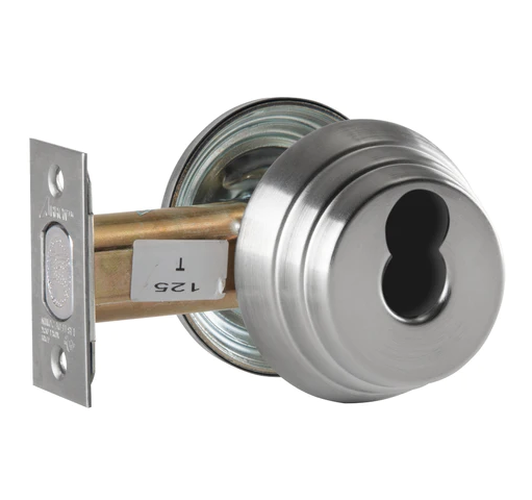

Arrow E71-IC Grade 2 Single Cylinder Deadbolt, SFIC Prep Less Core

Arrow E71-IC Grade 2 Single Cylinder Deadlock, SFIC Prep Less Core, Field Reversible

Function: Single cylinder w/ Concealed Mounting Screws (IC Only) - ANSI E0152
Operation
• Inside: Turnpiece retracts and projects bolt
• Outside: Key retracts and projects bolt

Specifications:

Housing: Two-piece housing, with free-spinning outer ring to prevent wrenching.

Thru-bolting: Supplied with two 1/4" (6.35mm) steel thru-bolts.

Cylinder: Accepts 6 or 7 pin, small format, interchangeable cores. Supplied less cores. Will accept Best™ or Falcon™ type cores.

Deadbolt: 1" (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin & insert.

Backset: 2-3/8" (60.32mm), 2-3/4" (69.85mm).

Deadbolt fronts: 2-1/4" (57.15mm) x 1" (25.40mm) standard for 2-3/8" (60.32mm) backset, 2-1/4" (57.15mm) x 1-1/8" (28.57mm) standard for 2-3/4" (69.85mm) backset.

Doors: 1-3/8" (34.925mm) to 1-3/4" (44.45mm) thick standard.

Strikes: Supplied standard with the #346 wood frame strike and BX91D strike reinforcement.

Handing: All functions are reversible.

Certification & Compliance
• ANSI A156.5, Auxiliary Locks, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour fire doors when used in conjunction with a rated primary latching device.

Finishes: 03, 04, 09, 10, 10B, 10BE, 14, 15, 26, 26D, BSP, WSP

Model: Arrow E71-IC 26D, E71-IC 10BE
