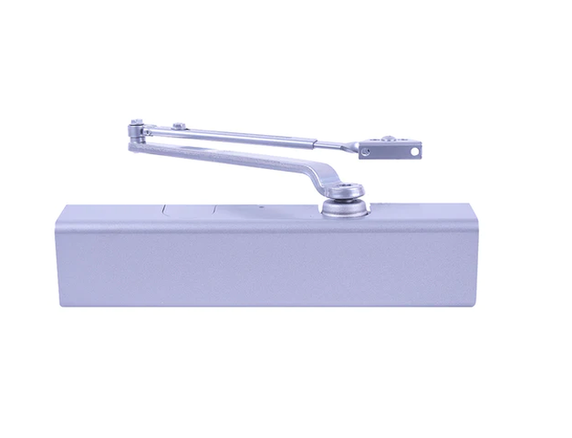

Arrow 5016NH Hold Open Door Closer, Tri-Packed (Regular, Parallel & Top Jamb Mount), Size 1-6

In stock
$313.27
Price: $546.00
Instant Savings $232.73

FREE SHIPPING

SKU: 5016NH AL
Series: DCN500 Series - Heavy Duty
Size: Adjustable 1-6
Mounting: Regular, Top Jamb or Parallel Arm
Warranty: 10 years
Choose Options:
Hurry! Only left

Arrow 5016NH Door Closer, Tri-Packed (Regular, Parallel and Top Jamb Mount), Hold Open, Size 1-6, Full Plastic Cover

The Arrow 5016N Series Surface Applied Door Closers are ideal for use in commercial and institutional facilities where there is a demand for reliability and flexibility. Arrow offers multiple options for compliance with barrier-free codes for interior or exterior doors.

Features:
• Cast aluminum body.
• Hardened steel rack and pinion.
• High tensile steel springs.
• Staked valves
• Two non-critical adjusting valves (sweep and latch) control closing speed.
• Backcheck intensity valve.
• All temperature fluid.
• Available with a full plastic cover
• Non-handed for regular, top jamb and parallel arm mount applications.
• Hold open arm available on adjustable closers.
• Supplied with machine screws, fully threaded self-reaming/tapping screws, sleeve nuts and thru-bolts for 1-3/4" thick doors.
• 10 year limited warranty.

Sizes (Adjustable):
• 5016N – Adjustable sizes 1 through 6, Standard Arm or Hold Open Arm.

Finishes:
• Aluminum (689)
• Dark Bronze (690)
• Black Painted (693)

Compliance:
• UL/cUL listed.
• Meets the requirements of UL10C and UBC7.2 (1997) for positive pressure.
• Meets the requirements of ANSI A156.4 and ANSI ICC A117.1. Grade 1
• Meets ADA requirements (Americans with disabilities Act).

Finishes:
• Aluminum (689)
• Dark Bronze (690)
• Light Bronze (691)
• Gold (696)
• Black (693)

Model: Arrow 5016NH AL, 5016NH LBZ
