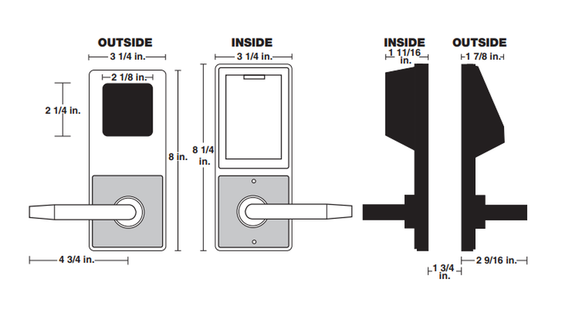

Alarm Lock PDL3000IC-R Trilogy Digital Prox Card Lock w/ Audit Trail, Sargent LFIC Prep, Less Core

Alarm Lock PDL3000IC-R Pushbutton Cylindrical Door Lock, with Prox Reader, 300 Users, 1600 Event Audit Trail, Straight Lever, Sargent LSIC Prep, Less Core

Prox reader capabilities with Trilogy durability for indoor and outdoor applications

Operation: Authorized digital code allows lever to retract latch.

• Rugged clutch mechanism and Grade 1 durability ensure long life
• 500 scheduled events, including 4 quick schedules for programming the 4 most common time schedules in one step
• 2000 user codes including: Master, manager, supervisor and basic user. Users are individually programmed to use a card only, code only, or for the highest security, both card and code. (3-6 digits) and/or accepts HID prox cards and keyfobs.
• Weatherproof performance, operational temperature range of -31°F to +151°F (-35°C to +66°C)
• Entry allowance from 3-15 seconds
• Greater security with temporary keypad lockout after 6 unsuccessful codeentry attempts
• Up to 40,000 event audit trail with time/date stamp for a printable record of door access activity by user
• Real time clock allows logging of events to within 1 second of accuracy
• Programmable relays energize when one or more selected events occur
• Easy to install in about an hour retrofits most cylindrical locksets and digital locks
• Battery operated; uses 5 AA batteries; 60,000 cycles, typical.
• Tap & add batch ID; card enrollment mode allows many cards to be quickly added without PC - also downloadable from PC or enroller tool.

Keypad: Weatherproof, all metal, 12-button programmable for multi-level access functions. Proximity antenna housing molded of ultra high strength, impact resistant Lexan®.

Door Thickness: 1 5/8" to 1 7/8."

Backset: 2 3/4" Standard. 2 3/8" backset also available

Standard Key Override Cylinder: Solid brass 6 pin tumbler cylinder keyed 5, SCI keyway, furnished in all K.O. models.

Cylinder Type: 6-Pin Sargent LFIC Prep, Less Core

Audit Trail: Lock's activity log can be extracted by using the AL-DTMIII (data transfer module), the AL-PCI2 (PC interface) and/or can be on-site printed using the AL-IR1 (hand-held infrared printer)

Strike: 1 1/8” x 2 3/4” T strike standard. With screws for wood or metal jambs. 1 1/4" x 4 7/8". ASA strike also included.

Latch Front: 1 1/8" x 2 1/4" wrought brass or stainless steel

Handing: Non-handed

Finishes: US3 polished brass, US26D satin chrome, 10B Duronodic

Power: 5AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, 60,000 cycles typical.

Programming: Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability and allowable entry time (3, 10 or 15 seconds), are programmable through the keypad, AL-DTMIII or Alarm Lock's DL-Windows PC Software.

Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.

Compliances: Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification. Latchbolt is UL listed and 3-hour fire rated, FCC certified. ADA compliant levers.

Model: Alarm Lock PDL3000IC-R US26D
