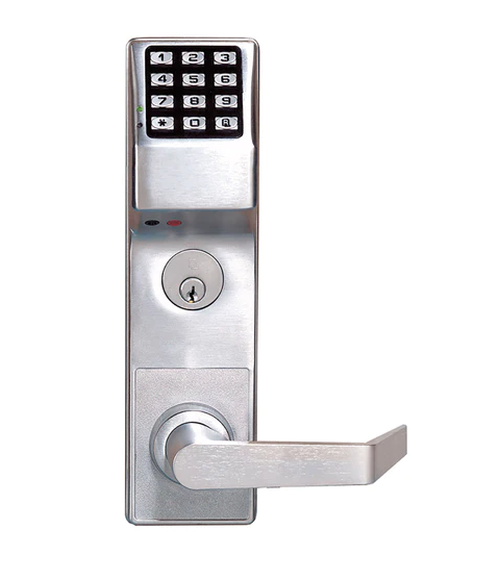

Alarm Lock DL3500CR Trilogy Digital Keypad Mortise Lock w/ Audit Trail

Alarm Lock DL3500CR Pushbutton Classroom Mortise Lock, 300 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever

Advanced high-security electronic mortise digital locks with audit trail and timed locking.

Operation: Authorized digital code enables outside lever to retract latchbolt, deadlocking latch and deadbolt (where applicable). Inside lever is always in passage mode and permits instant egress

• 300 User codes: Master, manager, supervisor & basic users.
• All Trilogy Mortise Lock Models are weatherproof and operate from -20 to 151 degrees F (-29 to 66 degrees C)
• Fingertip - or Windows PC-Programmable.
• Real time clock enables up to 500 scheduled events and holiday schedules.
• 40,000 Event audit trail provides a printed time/date-stamped log of all electronic activity.
• Audit trail polling to handheld infrared printer, PC or data transfer module.
• Standalone access control system with long-life batteries and low battery alert.
• Choose either left or right-handed, classroom or deadbolt function models
• Exceptionally durable with both strong clutch mechanism and stainless steel latchbolt and deadbolt (where applicable).
• Quick Passage mode enabled with any authorized user codes and function code (does not require lock be in program mode)

Operating Temperature: Weatherproof lock operating range from -20 to 151 degrees F (-29 to 66 degrees C)

Keypad: Weatherproof all-metal, 12-button programmable for multi-level access functions.

Programming: Locking modes, event schedules, group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time (3, 10 or 15 seconds), etc. are programmable through the keypad, from the Data Transfer Module (AL-DTM) or using any PC running Alarm Lock DL-Windows Software.

Door Thickness: Standard 13/4” (4.46cm) thickness.

Backset: 2 3/4" (7.01 cm)

Cylinder: 1-3/8” (3.5cm) mortise cylinder supplied. 13/8” – 1 - 11/2” (3.5 - 3.82cm) mortise cylinders accepted. Classroom Models are supplied with cylinder with straight cam. Deadbolt Models are supplied with cylinder with cloverleaf cam.

Classroom Models: Feature stainless steel latchbolt with 3/4” (1.91cm) projection and deadlocking latch

Handing: Right or Left hand. If reverse handing is required, lock is field reversible.

Audit Trail: Locks’ entry activity log can be polled to the Data Transfer Module (AL-DTM), any PC using DL-Windows Software, and/or can be on-site printed using the hand-held infrared printer (AL-IR1).

Strike: ASA strike supplied, matched to classroom or deadbolt function model & lock handing. Standard strike is 4-7/8” (12.43cm) and includes combination wood/metal screws

Finishes: US26D Satin Chrome, US5 Antique Brass, US3 Polished Brass, US26 Polished Chrome

Power: 5AA alkaline batteries extended operations, furnished. Audible low battery alert, visual and audible entry indicators, 80,000 cycles, typical.

Programming: Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability and allowable entry time (3, 10 or 15 seconds), are programmable through the keypad, AL-DTMIII or Alarm Lock's DL-Windows PC Software.

Door Prep: Standard ANSI 115.1 Mortise prep, modified with added through-bolt holes.

Compliances: Steelcase lockbody meets BHMA specifications for Grade 1 locks. UL Listed to the 10C Positive Pressure Specification. Latchbolt is UL Listed, and 3-hour fire rated. FCC Certified. ADA compliant levers.

Model: Alarm Lock DL3500CRR US26D, DL3500CRR US26D, DL3500CRR US10B, DL3500CRR US10B
