Alarm Lock DL3200IC Trilogy Electronic Digital Cylindrical Lock w/ High Capacity Audit Trail, SFIC Prep, Less Core

Alarm Lock DL3200IC Pushbutton Cylindrical Door Lock, 2000 Users, 40,000 Event Audit Trail, Weatherproof, Straight Lever, SFIC Prep, Less Core

T3 advanced digital lock with audit trail; high capacity audit trail lock

Operation: Clutch mechanism permits turning lever without retracting latch and resduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow level to retract latch. Inside level always instant egress.

• Rugged clutch mechanism and Grade 1 durability ensure long life
• 150 scheduled lock/unlock events, including 4 “quick schedules” for programming the 4 most common time schedules in one step
• 2000 user codes including: Master, manager, supervisor and basic user. One code (3-6 digits)
• Weatherproof performance, operational temperature range of -31°F to +151°F (-35°C to +66°C)
• Entry allowance from 5-15 seconds
• Greater security with “temporary keypad lockout” after 3 unsuccessful code-entry attempts
• Up to 40,000 event audit trail with time/date stamp for a printable record of door access activity by user
• Real time clock allows logging of events to within 1 second of accuracy
• Programmable relays energize when one or more selected events occur
• 4 time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
• Easy to install in about an hour retrofi ts most cylindrical locksets and digital locks
• Battery operated; uses 5AA batteries; 80,000 cycles, typical.
• Quick Passage Mode; (without being in program mode)

Keypad: : Rugged, vandal-resistant, all metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 15 seconds.

Door Thickness: 1 5/8" to 1 7/8."

Backset: 2 3/4" Standard. 2 3/8" backset also available

Standard Key Override Cylinder: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks.

Cylinder Type: SFIC Prep Less Core

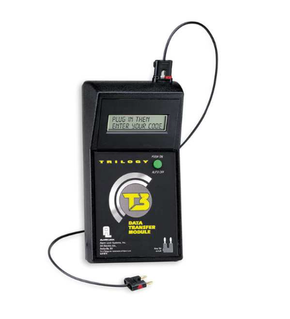

Audit Trail: Entry activity log can be polled to the Dara Transfer Module (AL-DTM), any PC using DL-Windows Software, and/or can be on-site printed using the handsheld infrared printer (AL-IR1). Activities included are: unlock/lock events, program mode changes, user entry, keypad lockout, remote release events, unauthorized code attempts, etc.

Latchbolt: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.

Strike: 1 1/8” x 2 3/4” T strike standard. With screws for wood or metal jambs. 1 1/4" x 4 7/8". ASA strike also included.

Latch Front: 1 1/8" x 2 1/4" wrought brass or stainless steel

Handing: Non-handed

Finishes: US3 polished brass, US26D satin chrome, 10B Duronodic

Power: 5AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive motor. 100,000 cycles typical.

Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.

Compliances: Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification and FCC certified. ADA compliant levers.

Model: Alarm Lock DL3200IC US26D
