Alarm Lock DL2700IC-R Trilogy Electronic Digital Cylindrical Lock, Sargent LFIC Prep, Less Core
In Stock
$785.86
Price:
$1,419.81
Instant Savings
$633.95

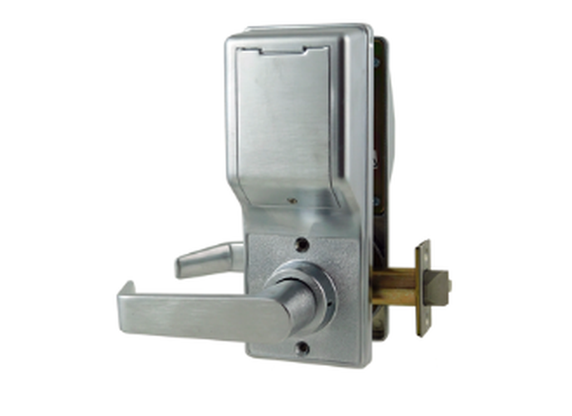

Alarm Lock DL2700IC-R US26D Grade 1 Pushbutton Cylindrical Lock, 100 Users, Straight Lever, 6-Pin Sargent LFIC Prep, Less Core
OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle.
Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract
latch. Inside lever always instant egress.
• Grade 1 Durability. Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
• Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
• Up to 100 different user codes (3-6 digits)
• 100% keypad programmable with a fingertip
• Individual, group or total user lockout codes
• Easy passage mode by manager and/or master
• Easy to install in about an hour, retrofits cylindrical knobsets and digital locks using slightly modified ANSI 161 Series Prep
• Standalone battery operated; 5 AA batteries rated at 200,000 cycles
• Non-handed for easy installation and versatility
• 2-wire remote override
• Visual and audible entry indicators

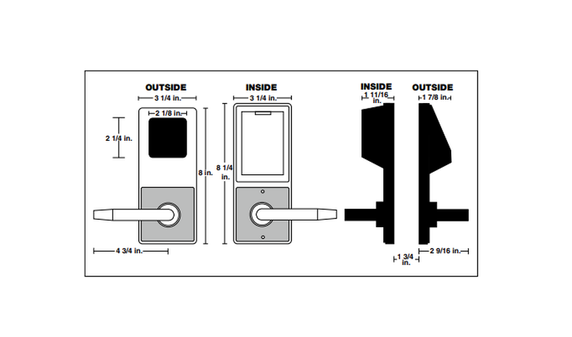

DOOR THICKNESS: 1 5/8" to 1 7/8."
OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle.
Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract
latch. Inside lever always instant egress.
• Grade 1 Durability. Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
• Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
• Up to 100 different user codes (3-6 digits)
• 100% keypad programmable with a fingertip
• Individual, group or total user lockout codes
• Easy passage mode by manager and/or master
• Easy to install in about an hour, retrofits cylindrical knobsets and digital locks using slightly modified ANSI 161 Series Prep
• Standalone battery operated; 5 AA batteries rated at 200,000 cycles
• Non-handed for easy installation and versatility
• 2-wire remote override
• Visual and audible entry indicators
DOOR THICKNESS: 1 5/8" to 1 7/8."
BACKSET: 2 3/4" Standard. 2 3/8" backset also available
KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced
STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks.
LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors
STRIKE: 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs
LATCH FRONT: 1 1/8” x 2 1/4” wrought brass or stainless steel
HANDING: Non-handed
CYLINDER TYPE: 6-Pin Sargent LFIC Prep, Less Core
FINISHES: US3 polished brass, US26D satin chrome, 10B Duronodic
FINISHES: US3 polished brass, US26D satin chrome, 10B Duronodic
POWER: 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor
DOOR PREP: Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes
COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets
Model: Alarm Lock DL2700IC-R
