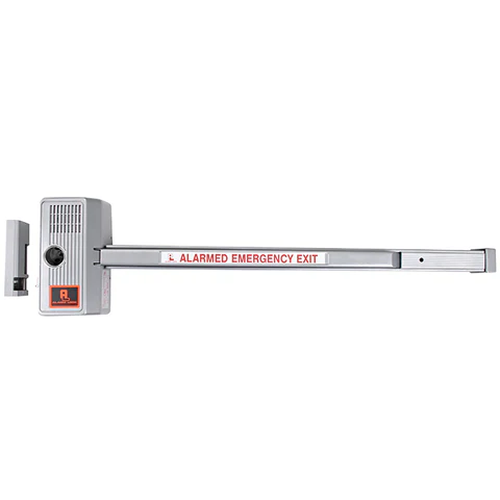

Alarm Lock 715X28X88 Sirenlock Delayed Egress Exit Alarm, Aluminum Finish

Alarm Lock 715X28X88 Sirenlock Delayed Egress Exit Alarm, 15 Second Delay, Aluminum

Alarm Lock’s Sirenlock model 715 is a UL listed panic alarm deadbolt device which restricts unauthorized use of exit doors, delaying egress while sounding an alarm. Provides instant egress in emergencies per life safety code.

SIRENLOCK™ MODEL 715
Features:
• 15 second delayed egress with instant 95db dual piezo horn alarm (meets UL specification)
• Instant alarmed exit in case of actual emergency or fire (meets NFPA 101 Life Safety Code)
• Easy-to-install, self-contained, surface-mount unit in a standard full door panic bar design
• Features both deadbolt and deadlatch
• Monitoring output - For simultaneous use of CCTV camera, secondary siren, remote monitoring console, etc.)
• Smoke Detector Input - Can be used with existing system smoke detector(s) or stand-alone smoke detector(s) powered from 715. Includes armored door cord and cables
• 9-Volt battery back-up powers siren in event of power failure
• Attractive design complements any decor - available in popular aluminum finish

Specifications:
Die-Cast Cover Finish: US28-Aluminum

Push Bar: Extruded aluminum channel with activation bar

Dimensions: 33” x 8 1/2” x 3 1/4” (WxHxD) 48” wide model available (use for 3 ft. narrow door)

Strike: Single Door Strike Model 725 supplied. For Double Doors order Model 735

Mounting Height: Center of unit should be approximately 38” from the floor

Special Features: Changeable 2 minute alarm cutoff or manual reset

Standard Features: Non-handed surface installations on single or double doors. Audible low battery warning and cam for exterior key control. Low activation pressure. Includes door warning sign.

Power: 9VDC alkaline battery. 12V transformer for back-up (also supplied).

Battery Life: One year standby typical, 200 alarm sequences typical, or constant alarm 7 hours typical

Lock Bolt: 1” throw - Heavy die cast alloy with reinforced steel inserts

Sound Pressure Level: 95db Dual Piezo Horn (measured at 10”)

Operating Temperature: 20˚F to 135˚F (-7˚C to 57˚C)

Model: Alarm Lock 715X28X88, 715X28X88X48
