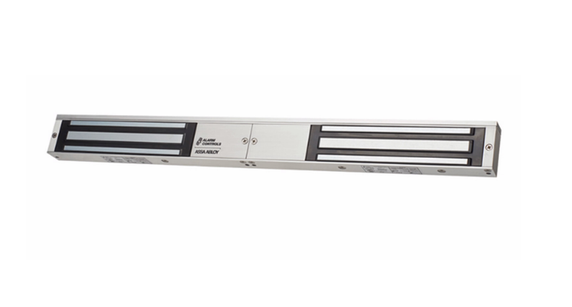

Alarm Controls 600DLB Electromagnetic Double Magnetic Lock w/ Indicating LED, Bond Sensor, Door Satus Sensor, 600 lbs Holding Force

Alarm Controls 600DLB Maglock, 600 lbs, LED, MBS, DSS, 12/24VDC, Double

Double magnetic lock with 600 lbs of force, per door, allows control of both doors within a double door configuration. Bracket mounted and easy to install double magnetic locks can be used with any access control system.

Specifications
For Door Type: Double Doors

Holding Force: 600 lbs, per magnet

Voltage: 12/24VDC
Electrical
• 12 or 24 VDC, field selectable
• Current draw, per magnet: 505, mA at 12 VDC, 260 mA at 24 VDC
• 600DLB bond sensor has SPDT 3A relay contacts, per magnet

Dimensions
• Magnet size: 19-3/4" L x 1-7/8" H x 1" W
• Armature size: 7-1/4" L x 1-1/2" H x 5/8" W

Operating Temperature: +14 to +131F [-10 to +55C]

Features
• 600DLB Magnetic lock with indicating LED, bond sensor and door status sensor
• Built-in arc suppression
• Instant release, no hysteresis
• Self-drilling TEC screws
• Non-aluminum parts are plated to resist corrosion
• E-Z mount header bracket and template provided for easy installation, no special tools required
• Can be used with any access control system
• Clear anodized (US28) finish standard
• Limited lifetime warranty

Certifications & Listings
• UL 294 listed
• UL 10C fire rated
• CAN/ULC-S104 fire door conformant
• ULC-S527 listed
• UL-864 listed
