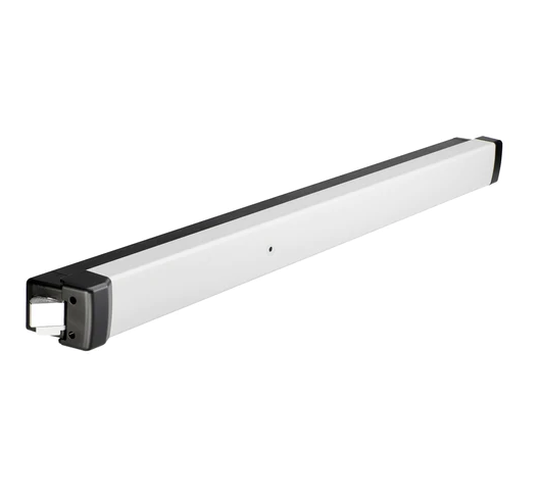

Adams Rite P8701-36 Narrow Stile Pullman Rim Exit Device for Hollow Metal and Wood Doors

Adams Rite P8701-36 Pullman Rim Exit Device, For Narrow Stile Hollow Metal and Wood Applications, 36" Device, Satin Aluminum Clear Anodized

Pullman Rim Exit Devices are designed for narrow stile hollow metal and wood (P8700) applications that require a life-safety exit device with Pullman latching solution. The P8700 features a 3/4" stainless steel Pullman latchbolt.

Function
When the door closes, the 3/4" throw deadlocking stainless steel Pullman latchbolt nests inside the strike assembly and the smaller deadlatch rests on the strike assembly activating the deadlatching feature. When the active pushbar is depressed, both the Pullman latchbolt and the smaller deadlatch are retracted, allowing the door to open. Suitable for use on single doors, or with mullion on pairs of doors. Designed for optimal performance in high-use areas.

Features
Materials: Active pushbar and back bar made of extruded aluminum, available in choice of finishes

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 36" [914.4mm] openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness
• Suitable for use with all door thickness.
• Can be used with trim on 1-3/4" thick doors, up to 2-1/4" door thickness.
• When cylinders are required, select rim cylinder length based upon door thickness

Stile Width: Minimum 2" stile. Fits ultra-narrow, narrow, medium and wide stile aluminum doors.

Projection: 2-1/2" when fully projected, 1-3/4" when dogged.

Dogging: Standard dogging with 3/16” hex key.

Fasteners: Device mounted using standard type ‘F’ self-tapping screws.

Strike: Horizontally adjustable strike assembly body made of Zamak 5 with hardened steel roller. Standard strike assembly suitable for centering doors in 4" jamb. Strike plate adjusts 1/4" horizontally.

Finish: Satin Aluminum Clear Anodized

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade

Electrified Options
Motorized Latch Retraction
The Motorized Latch Retraction (MLR) option incorporates a powerful and efficient motor to unlatch the exit device. Motor-powered latch retraction provides a quieter operation than solenoid options.
• No calibration required for installation
• Robust linkage mechanism for extended operation
• Motor-driven latch retraction
• Available for 30” – 48” doors
• 850mA during retraction and 370mA maintained in dogged hold position
• Requires 2A at 24 VDC regulated/ filtered power supply
• Continuous or intermittent use
• Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
• Available for panic and fire exit hardware

Model: Adams Rite P8700-36-US32D, P8700-42-US32D, P8700-48-US32D, P8701-36, P8701-42, P8701-48, P8701-36, P8702-42, P8702-48, P8702-36, P8702-42, P8702-48
