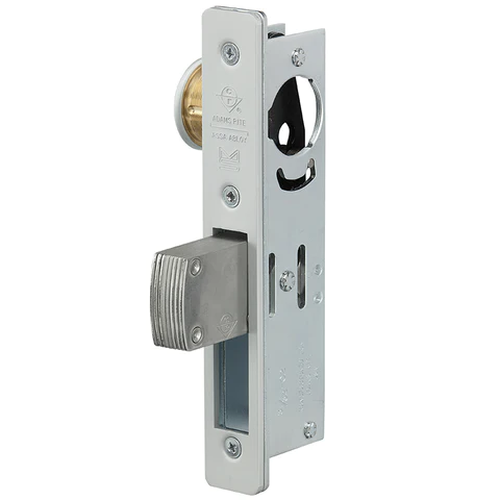

Adams Rite MS1851SW MS Deadlock, Radius Faceplate w/ Weatherstrip

Adams Rite MS1851SW MS Deadlock, Radius Faceplate w/ Weatherstrip, 1-1/2" Backset, Non-Handed, Cylinder sold separately

The MS1850S Series MS® Deadlock utilizes a laminated stainless steel bolt to provide maximum security for a single leaf narrow stile aluminum door.

Function
A huge bolt of laminated stainless steel, nearly 3" long, activated by an uncomplicated pivot mechanism, has made the basic MS1850S Series MS® Deadlock the standard of the narrow stile aluminum door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be.

Features
Backset: 1-1/2" [38.1 mm]

Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies by backset. Steel with corrosion-resistant plating.

Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].

Strike: can be cut in metal jamb

Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super” hacksaws.
MS1850S: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw.

Faceplate: 1SW - Radius Faceplate with Weatherstrip

Bolt Shape: 1 - Straight bolt

Handing: 0- Non-Handed

Operation
360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Model: Adams Rite MS1851SW-410-628, MS1851SW-410-313
