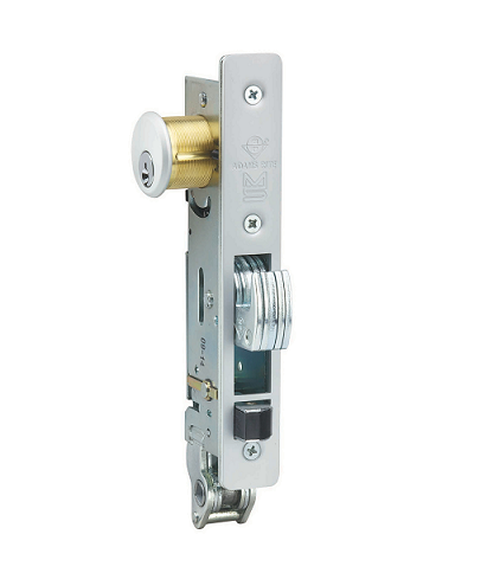

Adams Rite MS+1892 MS Deadlock/Deadlatch w/ Bevel Faceplate

Adams Rite MS+1892 MS Deadlock/Deadlatch, Beveled Faceplate, Cylinder sold separately

MS+® 1890 Series MS Deadlock/Deadlatch provides a maximum security deadlock for after hour and traffic control with deadlatch convenience during business hours.

Function
Maximum security MS+ deadlock after hours, plus the convenience of traffic control management during the business day. Typical installation is a bank or store requiring three modes of door control:
1. Both lock and latchbolts retracted for unrestricted entry and exit during business hours
2. Handle-operated latch for exit-only traffic just after closing
3. Maximum security MS hookbolt for overnight lockup. When using trim (available separately) to activate, handle or paddle operates latchbolt only.

Features
Cylinder Backset: 31/32" [24.6 mm], 1-1/8"[28.6 mm], or 1-1/2" [38.1 mm].

Case: Measures 1" x 7-3/8" x depth [25.4 mm x 187.3 mm x depth], depth varies by backset (see table on catalog page). Steel with corrosion-resistant plating.

Bolt
Deadlock bolt: 5/8" x 1-3/8" [15.9 mm x 34.9 mm] with 13/16" [20.6 mm] throw. Eight-ply laminated stainless steel. Centerply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super” hacksaws, while hook shape repels pry bar attempts to “spread” the door from its jamb or lift it off its track.
Latchbolt: Measures 5/8" x 5/8" [15.9 mm x 15.9 mm] with 7/16" [11.1 mm] throw. Zinc alloy with Delrin face for smooth, quiet action. Handing easily reversible. Bolt can be held fully retracted to allow door to be free swinging.

Strike: Armored strike with satin stainless steel trimplate with steel mounting plate and dustbox. Flat strike furnished. Also available for pairs of doors in radius shape, or flat with square corners for ANSI hollow metal jambs. Flat strikes also available with longer lip. MS+1890 Deadlock/Latchcannot be used with electric strikes.

Faceplate: 2 - Beveled Faceplate

Backset
2 - 31/32"
3 - 1-1/8"
4 - 1-1/2"

Strike Shape/Lip Length
01 - Flat/Standard Jamb
17 - Flat/Center Hung 4" Jamb
21 - Flat/Center Hung 4-1/2" Jamb

Handing
5 - LH or RHR
6 - RH or LHR

Operation
360° turn of key or thumbturn projects or retracts the hookbolt. 120° further turn retracts latchbolt as well. Lock accepts any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides. When using trim (available separately) to activate, handle retracts spring-loaded latchbolt only.

Model: Adams Rite MS1892-2015-628, MS1892-2016-628, MS1892-2175-628, MS1892-2176-628, MS1892-2215-628, MS1892-2216-628
