Adams Rite 8800MLR Narrow Stile Rim Exit Device w/ Motorized Latch Retraction

Adams Rite 8800MLR Narrow Stile Rim Exit Device, For Aluminum Applications, Motorized Latch Retraction

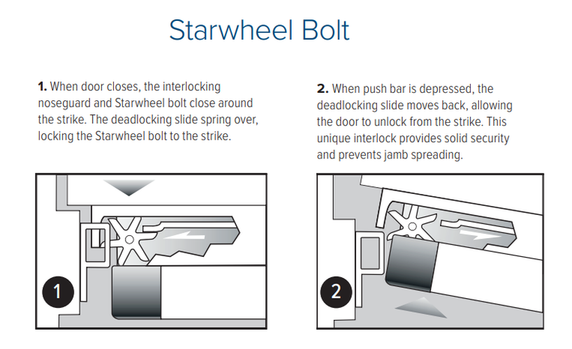

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.

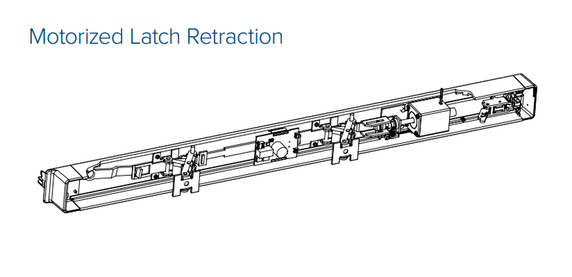

Motorized Latch Retraction
The Motorized Latch Retraction (MLR) option incorporates a powerful and efficient motor to unlatch the exit device. Motor-powered latch retraction provides a quieter operation than solenoid options.
• No calibration required for installation
• Robust linkage mechanism for extended operation
• Motor-driven latch retraction
• Available for 30” – 48” doors
• 850mA during retraction and 370mA maintained in dogged hold position
• Requires 2A at 24 VDC regulated/ filtered power supply
• Continuous or intermittent use
• Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
• Available for panic and fire exit hardware

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Standard dogging with hex key.

Fasteners: Standard machine screws.

Strike: Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8801MLR-36, 8801MLR-42, 8801MLR-48, 8801MLR-36, 8702MLR-42, 8702MLR-48, 8702MLR-36, 8702MLR-42, 8702MLR-48
