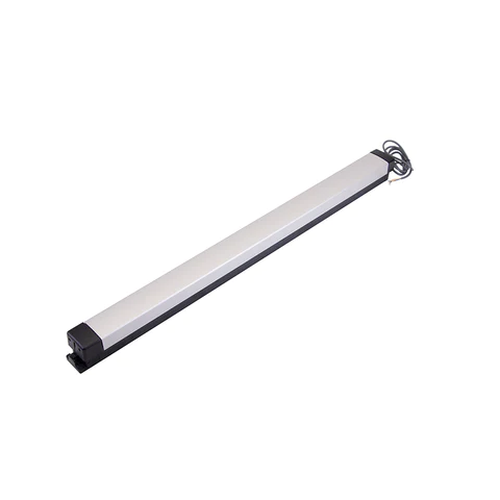

Adams Rite 8800EL Narrow Stile Rim Exit Device w/ Electric Latch Retraction

Adams Rite 8800EL Narrow Stile Rim Exit Device, For Aluminum Applications, Electric Latch Retraction

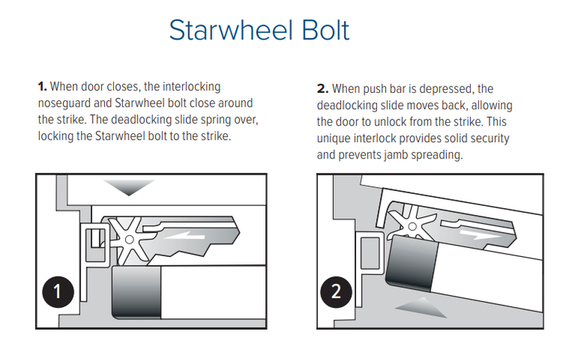

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Electric Latch Retraction (solenoid)
The EL option for rim exit devices use a solenoid mounted under the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. Because electrical operation of device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, device automatically relocks.

EL Option
Rim devices with the EL option are available in 12 or 24 VDC, and can be powered with a simple transformer and rectifier or other DC power supply.
• EL-12 VDC – 1.5 Amps inrush/hold
• EL-24 VDC – 0.6 Amps inrush/hold

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Standard dogging with hex key.

Fasteners: Standard machine screws.

Strike: Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8800EL-36-US32D, 8800EL-42-US32D, 8800EL-48-US32D, 8801EL-36, 8801EL-42, 8801EL-48, 8801EL-36, 8702EL-42, 8802EL-48, 8802EL-36, 8802EL-42, 8802EL-48
