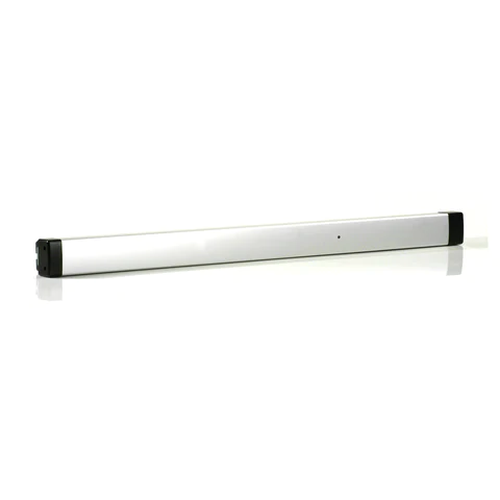

Adams Rite 8800C Narrow Stile Rim Exit Device w/ Cylinder Dogging

Adams Rite 8800C Narrow Stile Rim Exit Device, For Aluminum Applications, Cylinder Dogging

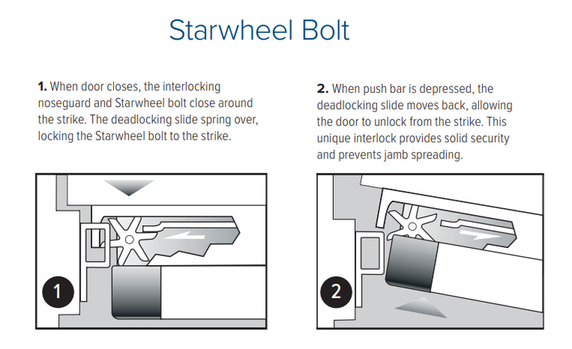

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.

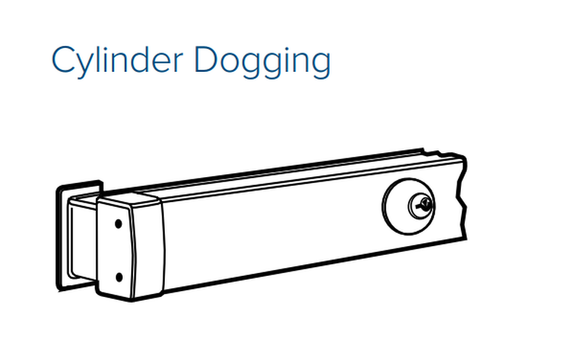

Cylinder Dogging
Suitable for all non-fire rated Adams Rite exit devices that require management control of exit device dogging. Any standard 15/16” [23.8 mm] to 1-1/8” [28.6mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 8736 Rim Cylinder can be used in a pushbar prepared at factory with Cylinder Dogging kit. Cannot be ordered with any other exit device options.

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 36" [914.4mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Cylinder Dogging

Fasteners: Standard machine screws.

Strike: Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8801C-36, 8801C-42, 8801C-48, 8802C-36, 8802C-42, 8802C-48
