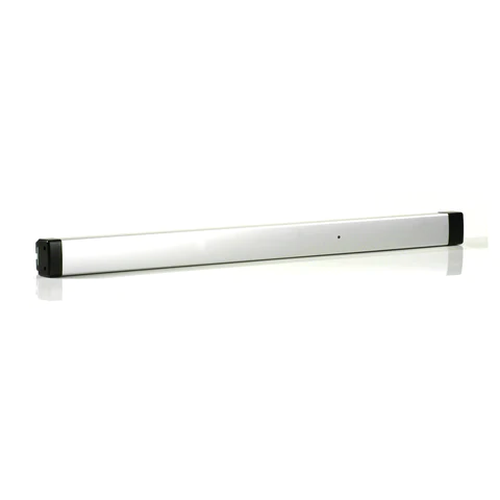

Adams Rite 8800 Narrow Stile Rim Exit Device

Adams Rite 8800 Narrow Stile Rim Exit Device, For Aluminum Applications

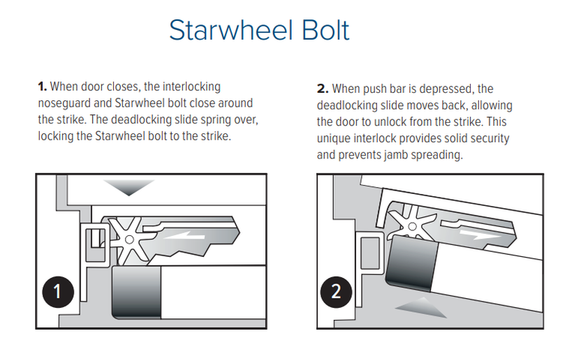

The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Standard dogging with hex key.

Fasteners: Standard machine screws.

Strike: Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Electrified Options
Electric Latch Retraction (solenoid)
The EL option for rim exit devices use a solenoid mounted under the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. Because electrical operation of device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, device automatically relocks.

EL Option
Rim devices with the EL option are available in 12 or 24 VDC, and can be powered with a simple transformer and rectifier or other DC power supply.
• EL-12 VDC – 1.5 Amps inrush/hold
• EL-24 VDC – 0.6 Amps inrush/hold

Motorized Latch Retraction
The Motorized Latch Retraction (MLR) option incorporates a powerful and efficient motor to unlatch the exit device. Motor-powered latch retraction provides a quieter operation than solenoid options.
• No calibration required for installation
• Robust linkage mechanism for extended operation
• Motor-driven latch retraction
• Available for 30” – 48” doors
• 850mA during retraction and 370mA maintained in dogged hold position
• Requires 2A at 24 VDC regulated/ filtered power supply
• Continuous or intermittent use
• Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
• Available for panic and fire exit hardware

Alarm
Suitable for all Adams Rite exit devices 36" wide or greater. This battery-operated alarm option emits a loud 95 decibel alarm
to notify management of unauthorized exit. Alarm is controlled by a key in standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. The cylinder is used to arm, disarm, delay, or reset the alarm. Will not alter the life-safety characteristics of the exit device in any way. Red letters printed on the bar give a “hands off” warning to deter accidental activation. Four AA alkaline batteries power twin horns for two minutes (or until disarmed) when pushbar is depressed. Beeps to signal need for new batteries.

Model: Adams Rite 8800-36-US32D, 8800-42-US32D, 8800-48-US32D, 8801-36, 8801-42, 8801-48, 8801-36, 8702-42, 8802-48, 8802-36, 8802-42, 8802-48
