Adams Rite 8701EL-36 Life Safety Rim Exit Device w/ Electric Latch Retraction

Adams Rite 8701EL Life Safety Rim Exit Device, Wide Stile Pushpad, For Hollow Metal and Wood Applications, 36" Device, Electric Latch Retraction, Satin Aluminum Clear Anodized

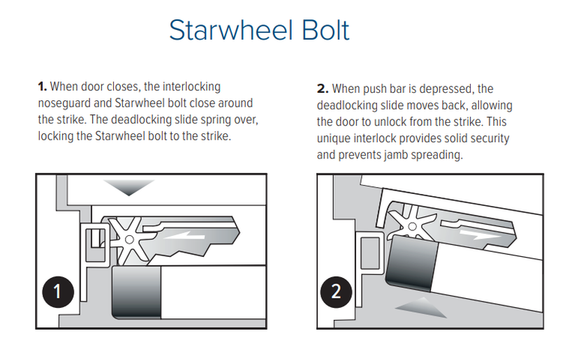

The 8700 Series Rim Exit Device is designed for hollow metal and wood applications that require a life-safety exit device with Starwheel interlocking solution.
Designed for use in applications with single doors or pairs of doors with a mullion.

Electric Latch Retraction (solenoid)
The EL option for rim exit devices use a solenoid mounted under the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. Because electrical operation of device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, device automatically relocks.

EL Option
Rim devices with the EL option are available in 12 or 24 VDC, and can be powered with a simple transformer and rectifier or other DC power supply.
• EL-12 VDC – 1.5 Amps inrush/hold
• EL-24 VDC – 0.6 Amps inrush/hold

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: 36" [914.4mm]. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 3-3/4" [95.3 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Standard dogging with hex key.

Fasteners: Standard self-tapping screws and machine screws.

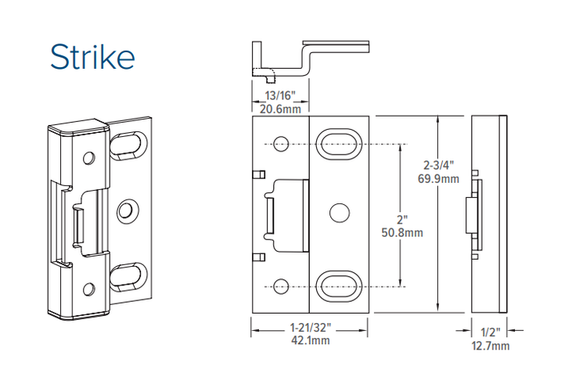

Strike: Standard hardened steel strike (included).

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8701EL-36-12, 8701EL-36-24
