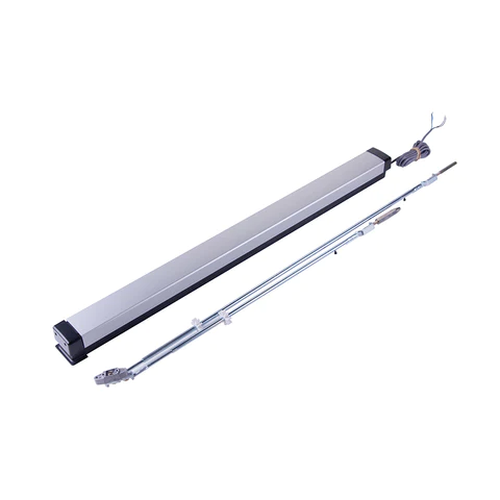

Adams Rite 8600LR Narrow Stile Concealed Vertical Rod Exit Device w/ Electric Latch Retraction

Adams Rite 8600LR Narrow Stile Concealed Vertical Rod Exit Device, For Aluminum Applications, Electric Latch Retraction

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors.

Electric Latch Retraction (solenoid)
The LR option for all other exit devices (non-rim exit devices) use a solenoid mounted under the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. Because electrical operation of device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, device automatically relocks.

LR Option
• Solenoids are rated for both intermittent and continuous operation
• 16 Amps inrush/ 0.5 Amps hold

Features
Materials: Push bar made of extruded aluminum, available in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 30" [762 mm], 36" [914.4 mm], 42" [1066.8mm] openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].

Fasteners: Standard machine screws.

Projection: 2-15/16" [74.6 mm] when fully projected, 1-15/16" [49.2mm] when dogged.

Door Height: Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Stile Wall: Doors with stile walls other than 1/8" [3.2 mm] require modification.

Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. Adjustable protected steel rods. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.

Certifications
UL 305 Panic hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8611LR-30, 8611LR-36, 8611LR-42, 8622LR-30, 8622LR-36, 8622LR-42
