Adams Rite 8400MLR Narrow Stile Mortise Exit Device w/ Motorized Latch Retraction

Adams Rite 8400MLR Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 1-1/8" Backset, Motorized Latch Retraction

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.

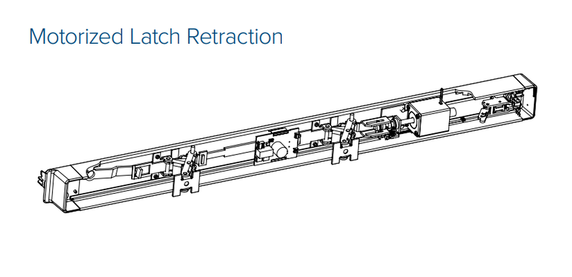

Motorized Latch Retraction
The Motorized Latch Retraction (MLR) option incorporates a powerful and efficient motor to unlatch the exit device. Motor-powered latch retraction provides a quieter operation than solenoid options.
• No calibration required for installation
• Robust linkage mechanism for extended operation
• Motor-driven latch retraction
• Available for 30” – 48” doors
• 850mA during retraction and 370mA maintained in dogged hold position
• Requires 2A at 24 VDC regulated/ filtered power supply
• Continuous or intermittent use
• Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
• Available for panic and fire exit hardware

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Specify handing.

Push bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4mm], 42" [1,066.8 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Face Shape: 0 - Flat, bevel, radius

Backset: 1-1/8" [28.6 mm]

Door Thickness: Suits 1-3/4" [44.5 mm] standard.

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Standard dogging with hex key.

Fasteners: Standard machine screws.

Bolts and Strikes: Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt.

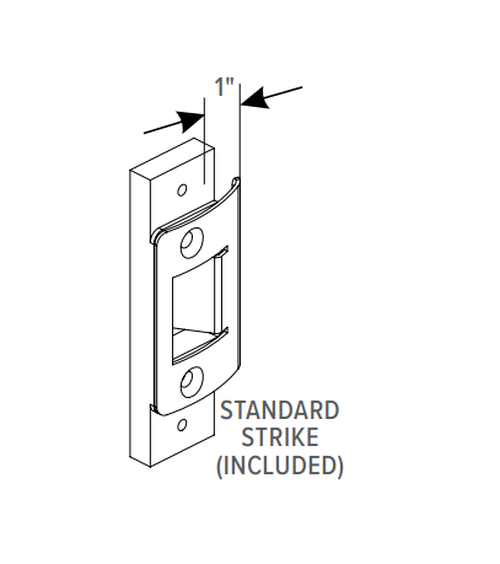

• Standard strike of stainless steel included.

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8410LR-38036, 8410LR-38030, 8410LR-38042, 8410LR-37036, 8410LR-37030, 8420LR-37042, 8420LR-38036, 8420LR-38030, 8420LR-38042, 8420LR-37036, 8420LR-37030, 8420LR-37042
