Adams Rite 8400C Narrow Stile Mortise Exit Device w/ Cylinder Dogging

Adams Rite 8400C Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, Cylinder Dogging

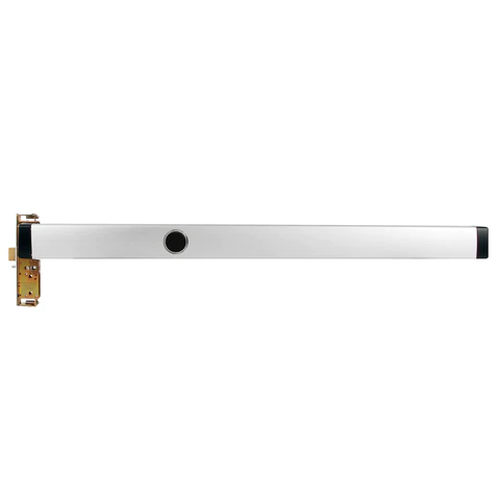

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.

Cylinder Dogging
Suitable for all non-fire rated Adams Rite exit devices that require management control of exit device dogging. Any standard 15/16” [23.8 mm] to 1-1/8” [28.6mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder can be used in a pushbar prepared at factory with Cylinder Dogging kit. Cannot be ordered with any other exit device options.

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Specify handing.

Push bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4mm], 42" [1,066.8 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Face Shape: 0 - Flat, bevel, radius

Backset: 31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm].

Door Thickness: Suits 1-3/4" [44.5 mm] standard.

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Cylinder Dogging

Fasteners: Standard machine screws.

Bolts and Strikes: Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt.

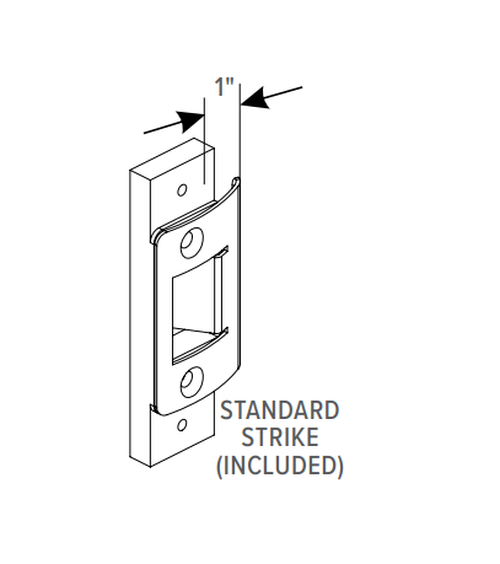

• Standard strike of stainless steel included.

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8410C-38136, 8410C-38130, 8410C-38142, 8410C-37136, 8410C-37130, 8410C-37142,
