Adams Rite 8400A Narrow Stile Mortise Exit Device w/ Alarm, Right Hand Reverse

Adams Rite 8400A Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 1-1/8" Backset, Battery Operated Alarm, Right Hand Reverse

The 8400 Series Narrow Stile Mortise Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with mortise locking solution. Designed for use in single door applications.

Alarm
Suitable for all Adams Rite exit devices 36" wide or greater. This battery-operated alarm option emits a loud 95 decibel alarm
to notify management of unauthorized exit. Alarm is controlled by a key in standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. The cylinder is used to arm, disarm, delay, or reset the alarm. Will not alter the life-safety characteristics of the exit device in any way. Red letters printed on the bar give a “hands off” warning to deter accidental activation. Four AA alkaline batteries power twin horns for two minutes (or until disarmed) when pushbar is depressed. Beeps to signal need for new batteries.

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Right Hand Reverse

Push bar Length
Standard sizes dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Face Shape: 0 - Flat, bevel, radius

Backset: 1-1/8" [28.6 mm]

Door Thickness: Suits 1-3/4" [44.5 mm] standard.

Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Dogging: Standard dogging with hex key.

Fasteners: Standard machine screws.

Bolts and Strikes: Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt.

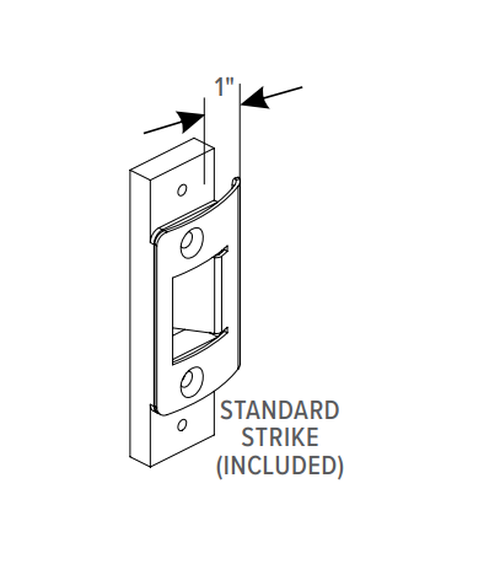

• Standard strike of stainless steel included.

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8410A-37136B, 8410A-37130B, 8410A-37142B, 8410A-37148B
