Adams Rite 8312A Life-Safety Mortise Exit Device, Bevel Faceplate Satin Aluminum Clear Anodized w/ Alarm

Adams Rite 8312A Life Safety Mortise Exit Device, Wide Stile Pushpad, For Hollow Metal and Wood Applications, Satin Aluminum Clear Anodized, Battery Operated Alarm

The 8300 Series Mortise Exit Device is designed for hollow metal and wood applications that require a life-safety exit device with mortise locking solution. Designed for use in applications with single doors or pairs of doors.

Alarm
Suitable for all Adams Rite exit devices 36" wide or greater. This battery-operated alarm option emits a loud 95 decibel alarm to notify management of unauthorized exit. Alarm is controlled by a key in standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. The cylinder is used to arm, disarm, delay, or reset the alarm. Will not alter the life-safety characteristics of the exit device in any way. Red letters printed on the bar give a “hands off” warning to deter accidental activation. Four AA alkaline batteries power twin horns for two minutes (or until disarmed) when pushbar is depressed. Beeps to signal need for new batteries.

Features
Materials: Push bar made of extruded aluminum, available in a variety of finishes.

Handing: Specify handing and bevel if applicable.

Push bar Length
Standard sizes: 36" [914.4 mm], 42" [1066.8mm], and 48" [1219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Backset: 2-3/4" [69.9 mm] only

Face Shape: Bevel Faceplate

Door Thickness: Suits 1-3/4" [44.5 mm] standard. Can be modified for thicker doors.

Stile Width: Minimum 5" [127.0 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

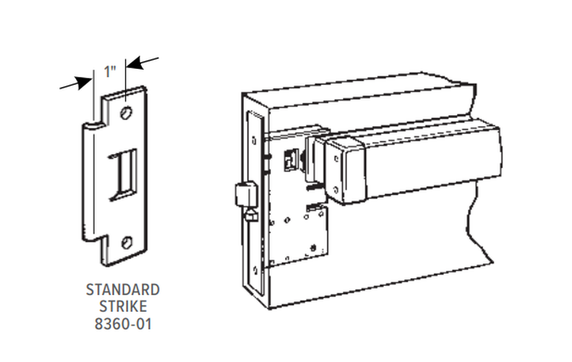

Bolts and Strikes: Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt.
• Standard strike of stainless steel included.

Certifications
UL 305 Panic Hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8312A-8136B, 8312A-7136B, 8312A-8148B, 8312A-7148B
