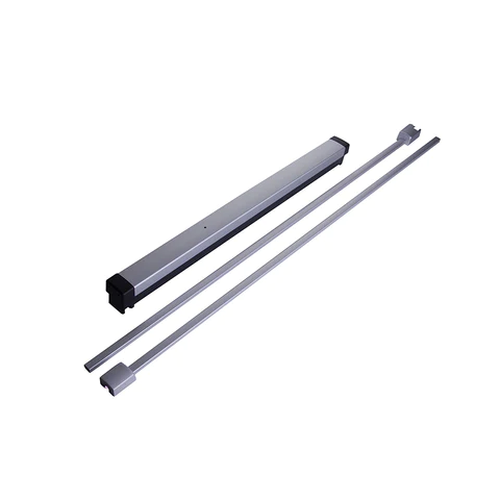

Adams Rite 8211T-36 Surface Vertical Rod Exit Device, Less Bottom Rod

Adams Rite 8211T Narrow Stile Surface Vertical Rod Exit Device, For Aluminum Applications, Less Bottom Rod, 36" Device

The 8200 Series Narrow Stile Surface Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with surface vertical rods for twopoint locking. Designed for use in applications with single doors or pairs of doors.

Features
Materials: Push bar made of extruded aluminum, available in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 30" [762 mm], 36" [914.4 mm], 42" [1066.8mm], and 48" [1219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].

Fasteners: Standard machine screws.

Projection: 2-15/16" [74.6 mm] when fully projected, 1-15/16" [49.2mm] when dogged.

Door Height: Standard configuration suitable for doors up to 8' [2.44 m] door, with bar height at 40" [1016mm] – 44" [1117.6 mm]

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 2" stile. Fits narrow, medium, and wide stile aluminum doors.

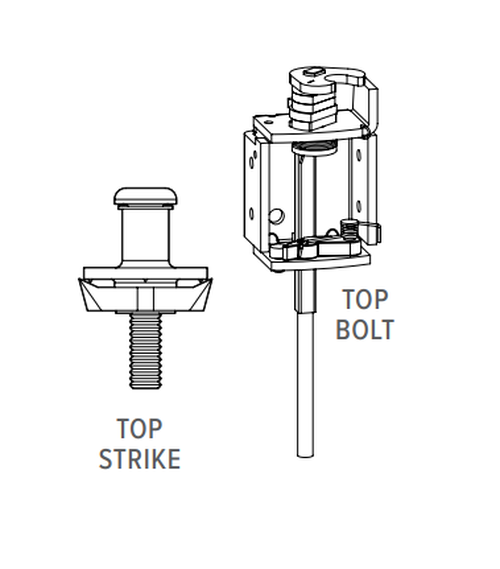

Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame. Adjustable steel rods protected in contoured covers. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability. Supplied with standard header strike.

Certifications
UL 305 Panic hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8211T-36
