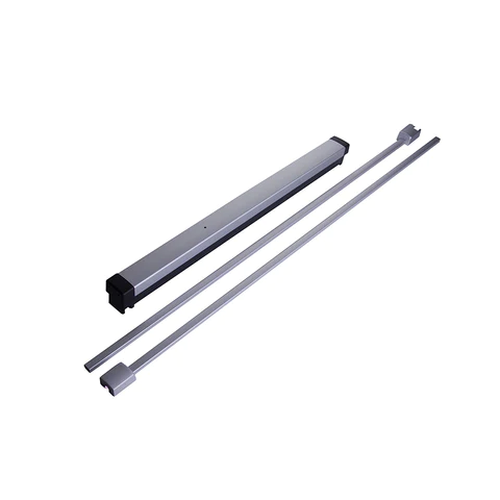

Adams Rite 8200MLR Surface Vertical Rod Exit Device w/ Motorized Latch Retraction

Adams Rite 8200MLR Narrow Stile Surface Vertical Rod Exit Device, For Aluminum Applications, Motorized Latch Retraction

The 8200 Series Narrow Stile Surface Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with surface vertical rods for twopoint locking. Designed for use in applications with single doors or pairs of doors.

Motorized Latch Retraction
The Motorized Latch Retraction (MLR) option incorporates a powerful and efficient motor to unlatch the exit device. Motor-powered latch retraction provides a quieter operation than solenoid options.
• No calibration required for installation
• Robust linkage mechanism for extended operation
• Motor-driven latch retraction
• Available for 30” – 48” doors
• 850mA during retraction and 370mA maintained in dogged hold position
• Requires 2A at 24 VDC regulated/ filtered power supply
• Continuous or intermittent use
• Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
• Available for panic and fire exit hardware

Features
Materials: Push bar made of extruded aluminum, available in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 30" [762 mm], 36" [914.4 mm], 42" [1066.8mm], and 48" [1219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Bar Height: Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].

Fasteners: Standard machine screws.

Projection: 2-15/16" [74.6 mm] when fully projected, 1-15/16" [49.2mm] when dogged.

Door Height: Standard configuration suitable for doors up to 8' [2.44 m] door, with bar height at 40" [1016mm] – 44" [1117.6 mm]

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 2" stile. Fits narrow, medium, and wide stile aluminum doors.

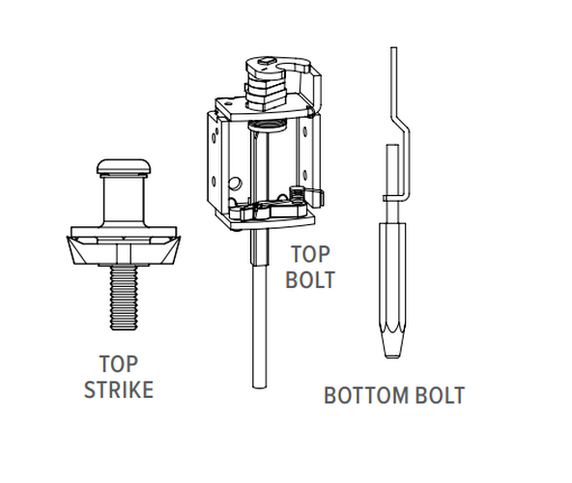

Bolts and Strikes: The patented top latching mechanism utilizes a rotating top bolt which latches around the header strike, interlocking the door to the frame. Adjustable steel rods protected in contoured covers. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability. Supplied with standard header strike.

Certifications
UL 305 Panic hardware
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 8211MLR-36, 8211MLR-42, 8211MLR-48, 8222MLR-36, 8222MLR-42, 8222MLR-48
