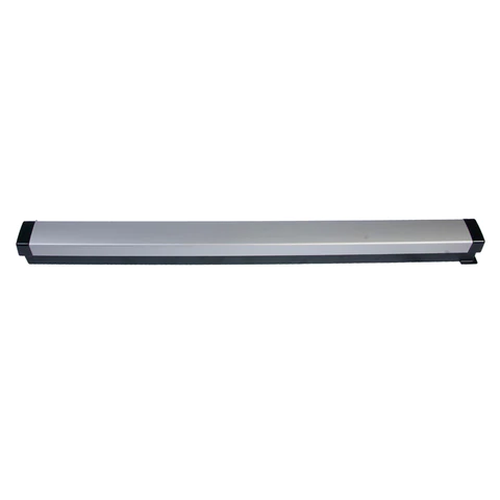

Adams Rite 8099-M1 Dummy Push Bar for Aluminum Door w/ Single Monitoring Switch

Adams Rite 8099-M1 Dummy Bar, Narrow Stile Pushpad, Single Monitoring Switch, for Aluminum Applications

The 8099 Dummy Push Bar is designed for narrow stile aluminum, hollow metal, and wood applications that do not require a latching/locking life-safety exit device.

Function
Dummy Push Bar with no latch mechanism but with either single or dual monitor/signal switches. May be used in conjunction with a maglock, where the push bar turns off the magnet and allows exit from the building. Dual switch version allows redundancy where required by code or the operation of a signal device. Designed for applications with single or pairs of doors.

Monitor
Mounted under the exit device pushbar on the hinge end, switches may be used to activate signal light, horn, monitor, or other devices. Switches can be wired for normally open or normally closed. Can be retrofit in field to existing exit devices. Suitable for all Adams Rite exit devices.
• M1: Single monitoring switch

Features
Materials: Push bar made of extruded aluminum, available variety of architectural finishes.

Stile Width
• For aluminum applications: minimum 2" [50.8 mm] stile

Fasteners
• For aluminum applications: standard machine screws.

Push Bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings.

Model: Adams Rite 8099-M1-3130, 8099-M1-3136, 8099-M1-3142, 8099-M1-3148, 8099-M1-3230, 8099-M1-3236, 8099-M1-3242, 8099-M1-3248
