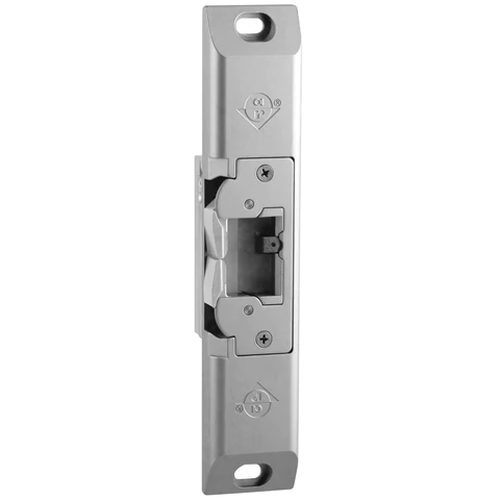

Adams Rite 74R1 Ultraline Electric Strike for Rim Devices - Aluminum, Hollow Metal/Wood Jamb

Adams Rite 74R1 Electric Strike, Field Selectable (Fail Safe/Fail Secure), For Rim Exit Devices, 9"X 1-3/4" Faceplate, For Aluminum, Hollow Metal or Wood Applications

74R1 Electric Strike is designed for rim exit devices with 3/4" [19.1 mm] Pullman latchbolts. For use in aluminum, hollow metal or wood applications.

Function
These non-handed strikes feature an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strikes release electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Provides electrical remote control, allowing door to open without actuation of the exit device.

Certifications
UL 1034 Burglary-Resistant Listed and Suitable for Outdoor Use
UL 294
ULC-S319
ANSI/BHMA A156.18
ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

Features:

Case: 74R1: 1-13/32" x 3-3/8" x 1-1/16" deep [35.7 mm x 85.7 mm x 27 mm deep]

Faceplate: Not separate
74R1: 1-3/4" x 9 x 11/16" [44.5 mm x 228.6 mm x 17.5 mm]

Electrical Voltage: Field selectable to match power source of 12/24 VDC. VA7400-16 VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector.

Current Draw:
.44A at 12 VDC
.46A at 16 VDC - Requires 16 DC adapter (P/N VA7400-16VDC)
.23A at 24 VDC

Fail Safe | Fail Secure: Field selectable fail safe/fail secure

Strike Opening: Bolt retaining keeper is stainless steel.
74R1: 5/8" x 1-7/16" x 9/16" deep [15.9 mm x 36.5 mm x 14.3 mm deep]. Strike accepts Pullman latch of exit devices without deadlocking bolts.

Strike Lip: Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge.

Latchbolt Projection: 74R1: 3/4" [19.1 mm]

Standard Package: Individually boxed with mounting plate shims, mounting screws, and installation instructions.

Model: Adams Rite 74R1-130, 74R1-121, 74R1-119
