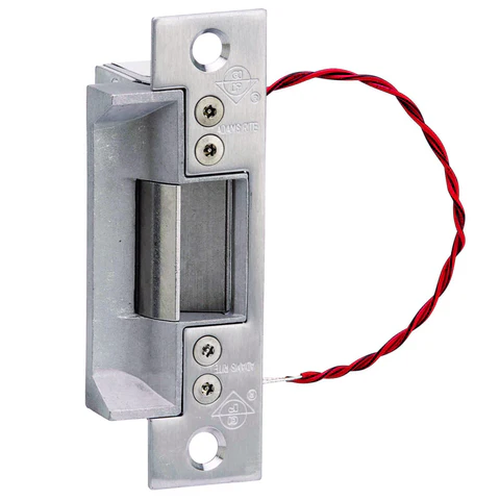

Adams Rite 7240 Fire-Rated Electric Strike for Cylindrical Locks, Hollow Metal Jamb

Adams Rite 7240 Electric Strike,  For Hollow Metal Applications, 1-1/4" x 4-7/8" Flat Faceplate with Square Corners,Fail Secure, Lip Extension 1-1/16" or Less, for cylindrical locksets

7240 Fire-Rated Electric Strikes with 4-7/8" [123.8 mm] faceplates are designed for cylindrical locksets with up to 5/8" [15.9 mm] latchbolt projection. Both models are for use in hollow metal door jambs.

Function
Remote electrical control of hollow metal doors equipped with cylindrical locksets with up to 5/8" [15.9 mm] latchbolt projection (7240). Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself. Fire-rated in fail secure mode only.

Certifications: UL 10C fire rated, 3 hour single door (fail secure only)
CAN/ULC-S104 fire door conformant

Features:

Case: 7240: 1" x 3-3/8" x 1-5/8" deep [25.4 mm x 85.7 mm x 41.3 mm deep]

Faceplate: Measures 1-1/4" x 4-7/8" [31.8 mm x 123.8 mm]; flat with square corners

Electrical Voltage: Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Current Draw: 0.33 A at 12 VDC
                       0.1 7A at 24 VDC

Fail Safe | Fail Secure: Assembled for fail-secure (locked when unpowered) operation.

Strike Opening: Bolt retaining keeper and strike lip are stainless steel. Strike accepts bolts from a variety of locksets.
7240: 5/8" x 1-7/16" x 9/16" deep [15.9 mm x 36.5 mm x 14.3 mm deep]

Strike Lip: Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge.

Latchbolt Projection: 7240: 5/8" [15.9 mm]

Standard Package: Individually boxed with mounting screws. Includes mounting clips and adhesive shims for use where welded tabs are omitted.

Model: Adams Rite 7240-310-628-00, 7240-510-628-00
