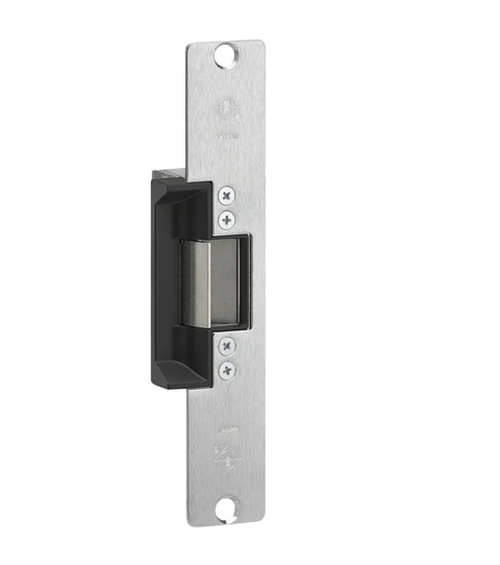

Adams Rite 7110 Electric Strike, 1-7/16" x 7-15/16" Flat Faceplate w/ Radius Corners for Aluminum, Hollow Metal or Wood Jamb

Adams Rite 7110 Electric Strike, For Aluminum, Hollow Metal or Wood Applications, 1-7/16" x 7-15/16" Flat Faceplate with Radius Corners, Lip Extension 1-1/16" or Less

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.

Function
Remote electrical control of any door equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical
lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Certifications: UL 1034 burglary-resistant listed - UL 294 (6th Edition) listed

Features:

Faceplate: 1-7/16" x 7-15/16" [36.5 mm x 201.6 mm] Flat with radius corners

Lip Extension: 1-1/16" or Less

Latchbolt Projection: 1/2" to 5/8" [12.7 mm to 15.9 mm]

Electrical Voltage: Available in 12, 16, or 24 Volt AC and DC. DC continuous units are silent, AC intermittent units “buzz” on operation.

Current Draw: 0.33 A at 12 VDC - 1.42 A at 12 VAC
                       0.1 7A at 24 VDC - 0.74 A at 24 VAC

Fail Safe | Fail Secure: Field selectable at time of installation. However, AC intermittent solenoid must not be used continuously in either.

Case: 1" x 3-3/8" x 1-5/8" deep [25.4 mm x 85.7 mm x 41.3 mm deep].

Strike Opening: 5/8" x 1-7/16" x 1/2" deep [15.9 mm x 36.5 mm x 12.7 mm deep]. Bolt retaining keeper is stainless steel. Strike accepts bolt of any Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches.

Strike Lip: Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge.

Standard Package: Individually boxed with mounting screws, mounting clips, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm].

Model: Adams Rite 7110-310-652-00, 7110-410-652-00, 7110-510-652-00, 7110-340-652-00, 7110-440-652-00, 7110-540-652-00
