Adams Rite 4591-03 Curved Deadlatch Paddle, Pull to Right

Adams Rite 4591-03 Curved Deadlatch Paddle for 1-3/4" Thick Doors, Pull to Right, Exterior Right-Hand Reverse or Interior Left-Handed

The 4590 Deadlatch Paddle is an ergonomically-friendly alternative to a knob or lever handle. Operate with a simple push or pull.

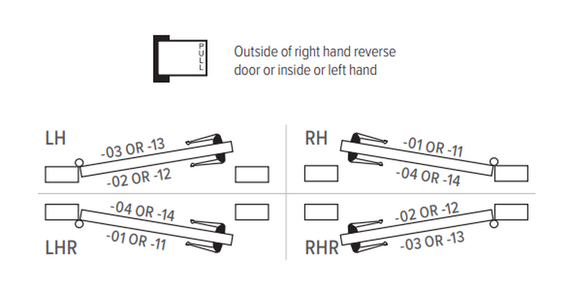

Function: Pull to Right - Outside of right hand reverse door or inside or left hand
An alternative to knob or lever handles. Makes opening a latched door as natural as opening an unlatched one – just push or pull in the direction in which the door swings. Compatible with any Adams Rite 4300, 4500 or 4900 Series Deadlatch, MS+1890 Deadlock/Deadlatch, or 2190/2290 Interconnected Deadbolt/ Deadlatch.

Features:

Paddle: Extruded aluminum.

Escutcheons: Zinc alloy with black finish. Secured to door stile with special binder posts that extend into the escutcheon to rigidly resist torque loads in any direction.

Cam Plug: Furnished for use with 4300, 4500 and 4900 Series Deadlatches. Cam plug not for use with MS+1890 Deadlock/Deadlatch or 2190/2290 Interconnected Deadbolt/Deadlatch. Secured in latch body by cylinder set screw, plug is also rigidly tied to escutcheon by hardened steel pins.

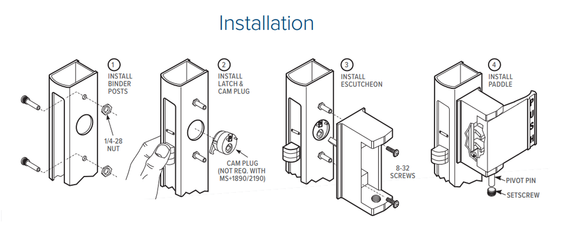

Standard Package: Individually boxed with mounting hardware. Units for 4300, 4500 or 4900 Series Deadlatches include cam plug.

Shipping weight: 1-1/2 lb [0.68 kg].

Operation:
Available in four configurations: push left, push right, pull left, and pull right.

Door Thickness
00 - 1-3/4 Inch

Compatible Products
Deadlatches
4300 Electrified Deadlatches, 4510, 4530, 4900, 4920AN Series Deadlatches.

Model: Adams Rite 4591-03-00-628, 4591-03-00-313, 4591-03-00-335, 4591-03-02-628, 4591-03-02-313, 4591-03-02-335
