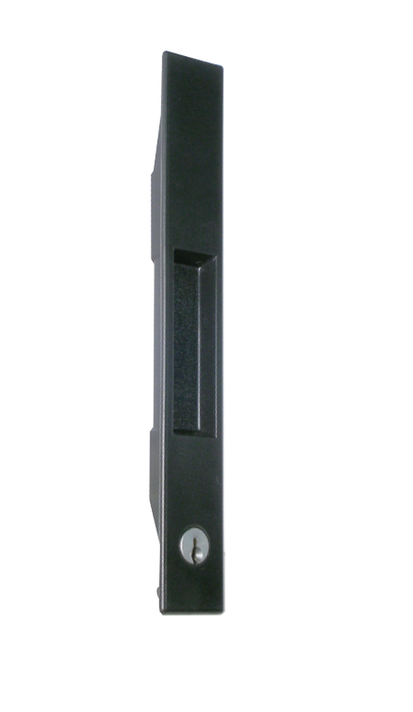

Adams Rite 4431-10-00-01-IB Flush Lockset w/ Cylinder and Square Lock Face, 1" to 1-5/16" Stile Thickness

Adams Rite 4431-10-00-01-IB, Flush Lockset with Cylinder, Square Lock Face, 1" to 1-5/16" Stile Thickness, Keyed Different, Individually Boxed

The 4431 Flush Locksets for sliding doors combine the time-tested and field-proven Adams Rite MS1847 with a slide button.

Function
Similar in function and nearly identical in size to the all-metal 4189, 4190 Flush Locksets, these economical units feature escutcheons molded of sturdy ABS resin. The black satin finish of the 4430, 4431 Flush Locksets lends elegance to aluminum doors. Not recommended for wood doors.

Operation
Locksets operated from inside by a simple up or down movement of a slide button, set flush in the deeply recessed finger pull. The lock mechanism (latching action unavailable) is the time-tested and field-proven Adams Rite MS1847 Deadlock and features the adjustable, self-protecting bolt.
• 4431 has a flush mounted cylinder outside

Features

Backset: Variable, minimum 5/8" [15.9 mm], maximum 1-9/32" [32.5 mm] from face of lock to escutcheon and cylinder centerline.

Keying: Keyed Different

Lock Face: Square Lock Face

Stile Depth: Minimum clear depth: Backset plus 9/16" [14.3 mm].

Escutcheons: Molded ABS resin plastic. Black Satin finish. Deeply recessed finger pull on both sides. Fits same cutout as metal 4189, 4190 Flush Locksets.

Anti Lift Lock Mechanism: Basic MS1848-09 (radius ends) or MS1848-10 (square ends) is supplied. Stainless stee lbolt is self-protecting, adjustable for reach.

Operation:
Inside: Vertical slide button projectsor retracts deadlock bolt.
Outside: 4431 features a key in, fivepincylinder with Schlage “C” keyway, projects or retracts bolt. Other cylinder makes not available.

Standard Package: 4431, with cylinder is with complete packages. Shipped individually boxed with mounting screws. 4431 includes two keys. Standard 4431 units are keyed different (KD)

Model: Adams Rite 4431-10-00-01-IB
