Adams Rite 3701EL-36-24 Fire Rated Rim Exit Device w/ Electric Latch Retraction

Adams Rite 3701EL-36 Fire Rated Rim Exit Device, For Hollow Metal and Wood Applications, 36" Device, Electric Latch Retraction, 24V, Satin Aluminum Clear Anodized

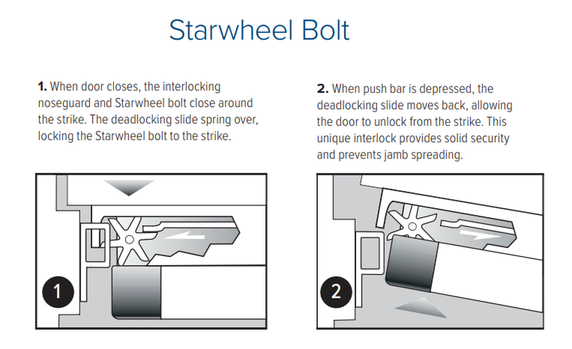

The 3700 Series Fire-Rated Rim Exit Device is designed for hollow metal and wood applications that require a fire-rated exit device with Starwheel interlocking solution.

Electric Latch Retraction (solenoid)
The EL option for rim exit devices use a solenoid mounted under the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. Because electrical operation of device is fail-secure, this option can be used on fire-rated as well as life-safety applications. In the event of a power failure, device automatically relocks.

EL Option
Rim devices with the EL option are available in 12 or 24 VDC, and can be powered with a simple transformer and rectifier or other DC power supply.
• EL-24 VDC – 0.6 Amps inrush/hold

Features
Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: 36" [914.4mm]. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 3-3/4" [95.3 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Fasteners: Standard self-tapping screws and machine screws.

Strike: Standard hardened steel strike (included).

Certifications
UL10C fire-rated, up to 3 hours
CAN/ULC S104 fire door conformant
NFPA 252 fire door conformant
ANSI/BHMA A156.3, Grade 1

Electric Latch Retraction
The EL option for Starwheel rim exit devices and LR option for all other non-rim devices uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device.
• Available on all 8000 Series
• Solenoid-driven latch retraction
• EL Requires 1.5 A at 12 VDC and 600 mA at 24 VDC
• Continuous or intermittent use
• Configured for fail-secure. In the event of a power failure, the exit device defaults to latched condition
• Compatible with REX monitoring

Model: Adams Rite 3701EL-36-12, 3701EL-36-24
