Adams Rite 3700M Fire Rated Rim Exit Device w/ Single Switch Monitor

Adams Rite 3700M Fire Rated Rim Exit Device, For Hollow Metal and Wood Applications, Single Monitoring Switch

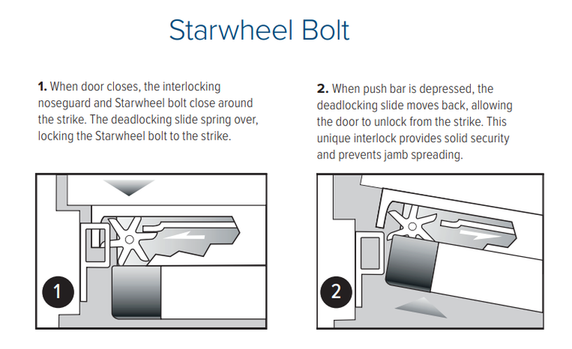

The 3700 Series Fire-Rated Rim Exit Device is designed for hollow metal and wood applications that require a fire-rated exit device with Starwheel interlocking solution.

Monitor
Mounted under the exit device pushbar on the hinge end, switches may be used to activate signal light, horn, monitor, or other devices. Switches can be wired for normally open or normally closed. Can be retrofit in field to existing exit devices. Suitable for all Adams Rite exit devices.

Features

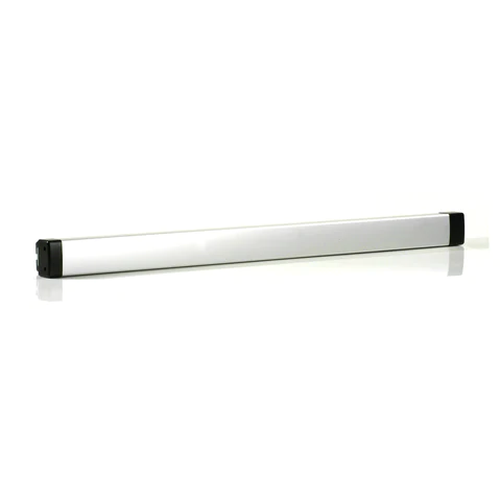

Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.

Handing: Device is non-handed.

Push bar Length
Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.

Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].

Stile Width: Minimum 3-3/4" [95.3 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength.

Projection: 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.

Fasteners: Standard self-tapping screws and machine screws.

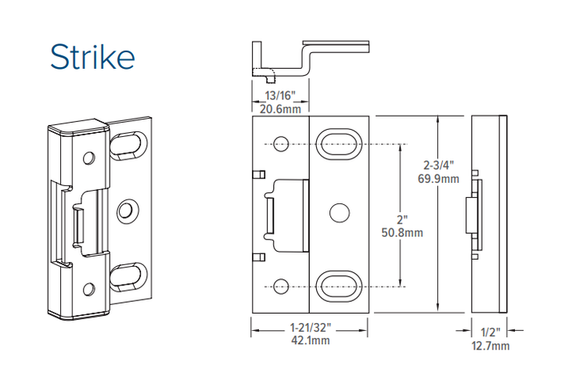

Strike: Standard hardened steel strike (included).

Certifications
UL10C fire-rated, up to 3 hours
CAN/ULC S104 fire door conformant
NFPA 252 fire door conformant
ANSI/BHMA A156.3, Grade 1

Model: Adams Rite 3701M-36, 3701M-42, 3700M-36-US32D, 3701M-42-US32D
