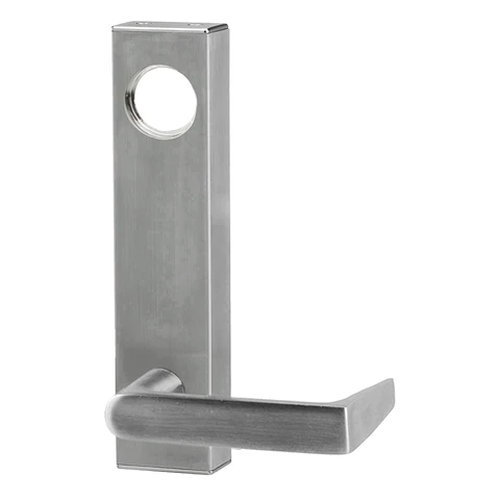

Adams Rite 3080-03 Entry Trim w/ Square Lever

Adams Rite 3080-03 Entry Trim, 03 Square Lever, Non-Handed, Cylinder sold separately

The 3080 Series Entry Trim provides outside activation for doors with any type of Adams Rite exit device and deadlatch. The locked handle is protected from vandalism and forced entry with a breakaway clutching mechanism.

Function
The 3080 Series provides outside activation of doors that have any type of Adams Rite exit device or deadlatch. Breakaway clutching mechanism protects the locked handle from vandalism or forced entry, in either direction. All models share the same core components, so levers can be changed without having to replace the entire trim.

Features

Handle: The 3080-01, -02, and -03 levers are designed to return within 1/2" [12.7 mm] of the door face. The designer levers in this series do not have this same feature. Please verify local code requirements to ensure compliance.

Mortise Cylinder: May be ordered with or without a hole for standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter cylinder with MS® Cam, available separately.

Standard Package: Individually boxed with mounting hardware.

Product Note: Adams Rite recommends that for optimal security the 3080 and 3080E Series Entry Trim is used in conjunction with Medeco high security cylinders, when a cylinder is required by the application.

Handing: No Handing

Cylinder Hole
with Hole
without Hole

Trim Cover Finish: Standard

Compatible Products
Deadlatches
4900 Series, 4920AN Series Deadlatches, 4781 Two-Point Deadlatch

Exit Devices
8100 Series, 8200 Series SVR
8300 Series, 8400 Series Mortise
8500 Series, 8600 Series CVR
8900 Series SCVR
8700 Series, 8800 Series Rim

Model: Adams Rite 3080-03-0-33-US32D, 3080-03-0-36-US32D, 3080-03-0-37-US32D, 3080-03-0-3U-US32D
